GR PLATE SERIES

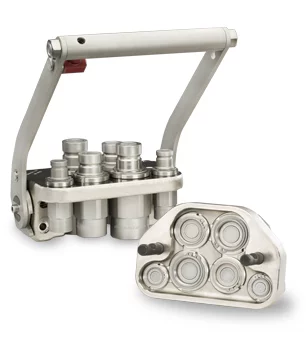

The GR Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two to ten hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same nominal coupler diameter and different media or different size couplers. A dust cap is supplied, and options include: an electrical connector for low voltage requirements and a parking station.

Description

FEATURES
  • Size range: 3/8” thru 1 1/4”
  • Port options: NPT, SAE, BSP
  • Connect/disconnect up to 25 MPa/300 bar/3625 psi residual pressure
  • Simple to use, with single motion connection
  • Auto-lock design prevents accidental disconnection
  • Min. of 2 to max. of 10 lines of different nominal size couplers or the same size diameter and different media
APPLICATIONS
  • Any application requiring leak-free connections with or without residual pressure of multiple couplings
  • Harvesters, front-end loaders, snow removal, construction machinery, mining, drilling machinery
  • Refrigeration equipment
