Hydraulic Multi Coupler Plate Solutions

Stucchi is a leading global supplier of hydraulic multi coupler plate solutions, recognized for developing, manufacturing and distributing reliable quick disconnect products for more than 50 years.  We offer vast experience in fluid connection and control solutions with forward thinking, innovative solutions with quick coupler products.  We are known for exceptional analysis and design capabilities, providing problem solving skills that contribute to your process improvement.

Stucchi is recognized nationally and internationally for high-quality quick release products, delivered on-time at the lowest cost available. Our vast global resources allow for quick turn-around time with personal attention and excellent customer service. We offer a wide selection of standard quick coupling plates and couplers that meet critical customer specifications and offer custom designed solutions when you are faced with challenging configurations.

Hydraulic Multi Coupler Plates and Quick Couplers

Improve productivity and efficiency with single motion connection of multiple hydraulic lines mounted in our hydraulic multi coupler plates. Stucchi provides quicker and easier multi-coupling connections that reduce downtime between production runs anywhere electrical circuits or pneumatic oil or water is connected on machinery and equipment.

Our multi-coupling products are proven to improve productivity, efficiency, performance and safety, and include the following:

  • DP PLATE SERIES

    The DP Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two to four hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same coupler nominal diameter and different media. A dust cap is supplied, and options include: an electrical connector for low voltage requirements and a parking station.

    Read more
  • GR PLATE SERIES

    The GR Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two to ten hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same nominal coupler diameter and different media or different size couplers. A dust cap is supplied, and options include: an electrical connector for low voltage requirements and a parking station.

    Read more
  • GRE PLATE SERIES

    The GRE Series of Multi-Coupling Plates reduce downtime between production runs wherever pneumatic, oil, water, and electrical circuits are to be connected on production machines or test benches, etc. The GRE connects with little effort due to its superior guidance pin system, and since it only connects in one position, it prevents any connection error by inversion of circuits.

    Read more
  • SV2 PLATE SERIES

    The SV2 Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two large diameter hydraulic lines with a single, simple movement requiring very little force. The system eliminates crossing of lines, reducing downtime and insuring couplers are fully connected. The auto-locking system insures that lines are connected safely and provides secondary retention of the connection.

    Read more
  • BM3 PLATE SERIES

    The BM3 Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two large diameter hydraulic lines with a single, simple movement requiring very little force. The system eliminates crossing of lines, reducing downtime and insuring couplers are fully connected. The auto-locking system insures that lines are connected safely and provides secondary retention of the connection.

    Read more
  • ONE POSITION PLATE SERIES

    The One Position Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of single large diameter hydraulic lines with a single, simple movement requiring very little force. The system reduces connection time and insures couplers are fully connected. The auto-locking system insures that lines are connected safely and provides secondary retention of the connection.

    Read more
  • FAP FAPZ SERIES

    FAP is the flat face coupling series to assemble on multicoupling plates. They are manufactured in high resistance carbon steel with zinc plated surface treatment. The internal valve system and the flat face valve allow connection of the coupling safely even in presence of high internal residual pressure and at the same time avoiding fluid loss. “FAP-P” couplings are locked on the plates by simple snap rings.

    FAP-Z is the flat face coupling series to assemble on multicoupling plates. They are manufactured in high resistance carbon steel. The internal valve system and the flat face valve allow connection of the coupling safely even in presence of high internal residual pressure and at the same time avoiding fluid loss. The couplings are locked on the plates by threaded sleeve and anti-unscrewing snap rings. This locking system makes “FAP-Z” couplings suitable for impulse pressure applications.

    Read more
  • Handles and Connectors

    Replacement handle kit

    Read more

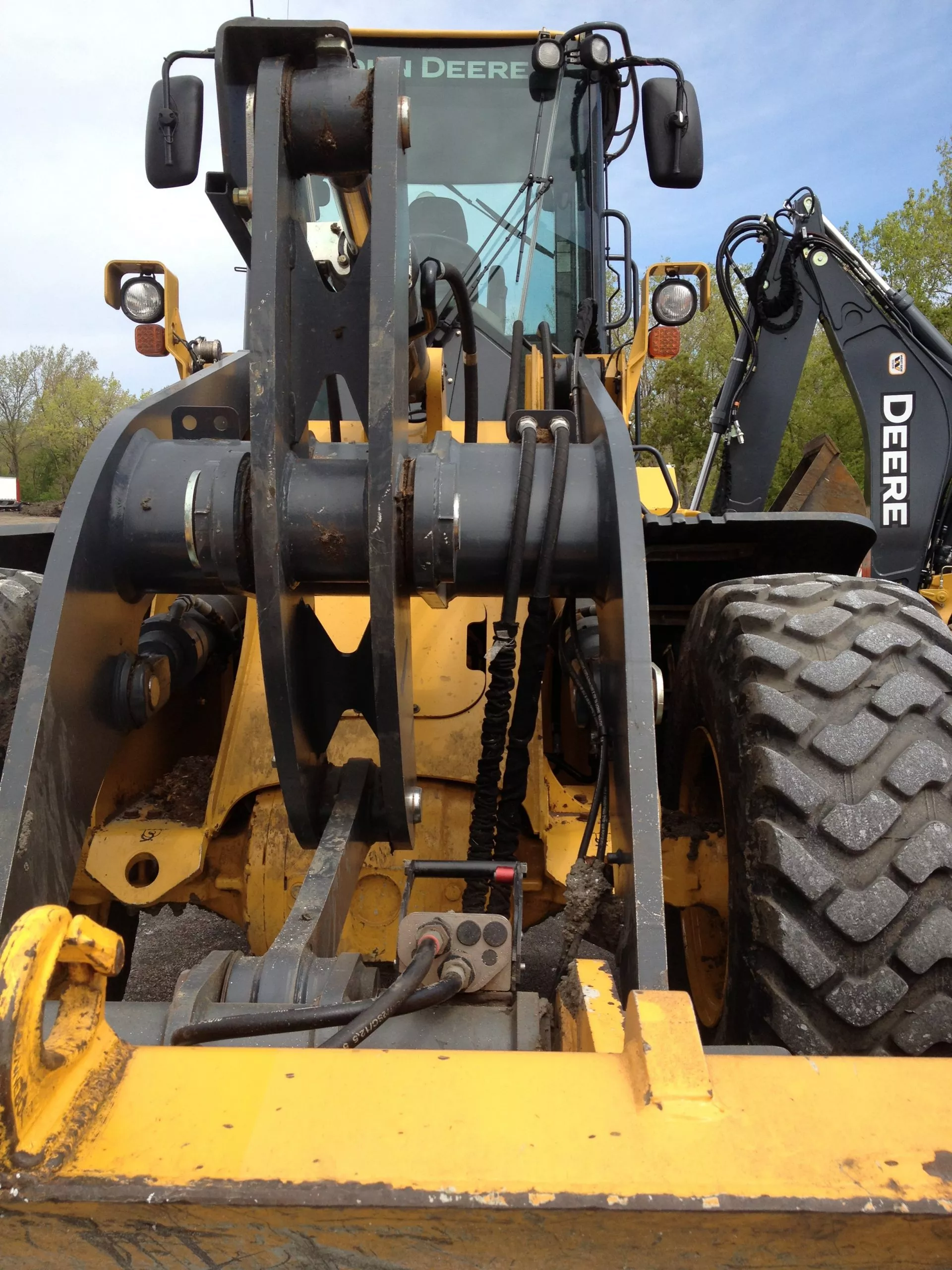

Quick coupling products by Stucchi provide simultaneous couple and uncouple solutions of multiple electrical or hydraulic lines with a simple, single movement that requires minimal force. Our multi-coupling plates and couplings improve many processes that require leak free connections of multiple couplings found in several applications such as construction, drilling, mining machinery and equipment, tool changes in injection molding, refrigeration equipment and many others.

Stucchi offers exceptional customer service, providing quick connect solutions that meet your specifications with high quality components for long lasting performance.

Video: Learn to replace couplings on multi-coupling plates

Video: Hydraulic Coupling Plate Connection for Power and Rod Tongs on Workover Rig

Stucchi offers high quality quick connect products that meet and exceed customer specifications with forward thinking, innovative connection solutions.  We are recognized as a leading global supplier of quick connect and disconnect solutions with quick response to your needs and on time delivery. Contact us today to speak with a knowledgeable engineer about our superior connection solutions including hydraulic multi-coupler plates.
