Stucchi Quick Connect Couplers and Fittings
Showing 1–12 of 43 results
-
A-HD SERIES
The A-HD Series Flat Face Couplings address residual pressure in a circuit, anywhere thermal expansion of trapped fluid causes pressure to develop. They connect by hand with residual pressure, without releasing any fluid into the environment, due to an internal valving system.
Read more -
A-HP SERIES
The A-HP Flat Face High Pressure Series Coupler offers a simple yet highly effective, patented safety system to prevent accidental disconnection, making it the solution for high pressure leak-free applications. This patented sleeve system automatically rotates the sleeve when connected, engaging the safety lock mechanism. To disconnect: the coupler sleeve must be turned and aligned between the release notch and locking pin.
Read more -
A-PREMIER INTERNATIONAL SERIES
The A Premier International Series offers the same higher pressure ratings, superior flow characteristics, and lower pressure drop features and benefits as the A Premier series, with convenient international BSP British or German DIN port configurations. Specifically designed for applications needing no-leak performance and the ideal solution for limiting contamination in hydraulic circuits,the non-spill design avoids fluid loss during connection and disconnection. We also have our standard A-Premier series with NPT, SAE, JIC, and ORFS port connections.
Read more -

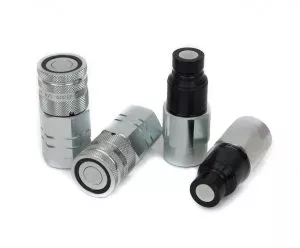

A-PREMIER SERIES
The A Premier Series Flat Face ISO 16028 Interchange Couplings offer higher pressure ratings, superior flow characteristics, and lower pressure drops compared to FIRG Series or competitors’ products. Specifically designed for applications needing no-leak performance and the ideal solution for limiting contamination in hydraulic circuits, the non-spill design avoids fluid loss during connection and disconnection. The A Premier is also available in an international version, with British BSP or German DIN port options.
Read more -
A-ZN SERIES
The A-ZN Series Flat Face Couplings utilize specialized plating for high corrosion resistance, designed to exceed the ISO salt spray test. Standard zinc plating is rated for 400 hours before red spotting. The Z version offers higher pressure and superior flow ratings with a lower pressure drop compared to competitors’ products. The ZN version plating is designed to exceed 1000 hours before the appearance of red spotting in the same ISO salt spray test.
Read more -
AG INTERCHANGE IR I IRV I IRS SERIES
The Agriculture IR Series Hydraulic Quick Couplings offer automatic shut-off during disconnection. The IR features a variety of connection mechanisms: ball (IR), poppet (IRV), push pull (IRS) or push pull sleeve connectable under residual pressure (IRS PC). Poppet or flat-face are recommended for new applications.
Read more -
APM SERIES
The APM Series Flat Face Couplings are state-of-the-art solutions for high residual pressure. They address residual pressure in a circuit anywhere thermal expansion of trapped fluid causes pressure to develop, and connect by hand with residual pressure, without releasing any fluid into the environment. The APM is intended to relieve pressure within itself only.
Stucchi APM Series from Stucchi USA on Vimeo.
Read more -

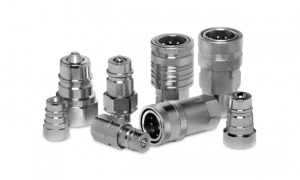

BIR SERIES
The BIR Series ISO A Interchange Couplers are one of the most popular designs worldwide, due to their durability and use of a poppet style valve for the sealing mechanism. The BIR series features a zinc plated steel coupler and zinc plated hardened steel nipple, with nitrile seals. They are available from size 1/4 to 2 inches in size, to cover the various fields of hydraulic applications.
Read more -
BM3 PLATE SERIES
The BM3 Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two large diameter hydraulic lines with a single, simple movement requiring very little force. The system eliminates crossing of lines, reducing downtime and insuring couplers are fully connected. The auto-locking system insures that lines are connected safely and provides secondary retention of the connection.
Read more -
CUSTOM PLATE COUPLERS
Whether you are refurbishing your entire plant or simply replacing legacy couplers, our custom plate couplers meet your needs—and are designed to your exact specifications. Eliminate crossing of lines, expensive leaks and downtime, with custom plate couplers that perform consistently in a rigorous environment.
Read more -
DP PLATE SERIES
The DP Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of two to four hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same coupler nominal diameter and different media. A dust cap is supplied, and options include: an electrical connector for low voltage requirements and a parking station.
Read more -
Dust Caps & Repair Kits
Protective caps and plugs are useful accessories that prevent damaging dust, water or mud from entering the quick couplings, thus lengthening their working lives. Repair kits are available upon request.
Read more
