ONE POSITION PLATE SERIES

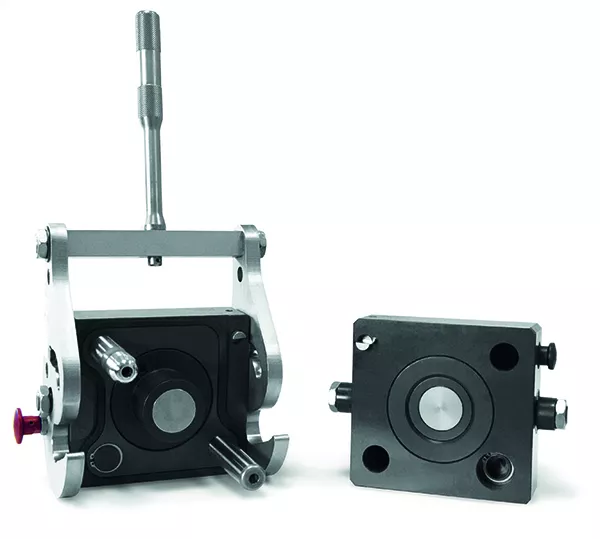

The One Position Series of Multi-Coupling Plates allows the simultaneous couple and uncouple of single large diameter hydraulic lines with a single, simple movement requiring very little force. The system reduces connection time and insures couplers are fully connected. The auto-locking system insures that lines are connected safely and provides secondary retention of the connection.

Category: Tags: , ,

Speak to a Specialist:
847-956-9720 or Via Email

Description

FEATURES
  • Size range: 1 1/2”
  • Port options: NPT, SAE
  • Connect/disconnect up to 25 MPa/300 bar/3625 psi residual pressure
  • Working pressure: 35 MPa/5000 psi
  • Simple to use, with single motion connection
  • Auto-lock design prevents accidental disconnection
  • Single line: 1 1/2”
  • Keyed plate halves to prevent crossmatching lines
  • Optional position for adding a standard electrical connector
  • Removable lever handle to keep a compact profile during use
APPLICATIONS
  • Any application requiring large diameter leak free connections with or without residual pressure of multiple couplings
  • Mobile equipment, mining, drilling, any large diameter requirements
