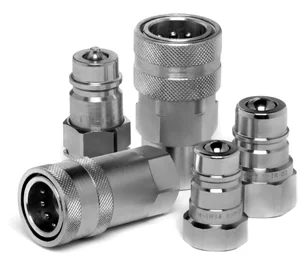

ag interchange series

AG INTERCHANGE IR I IRV I IRS SERIES

The Agriculture IR Series Hydraulic Quick Couplings offer automatic shut-off during disconnection. The IR features a variety of connection mechanisms: ball (IR), poppet (IRV), push pull (IRS) or push pull sleeve connectable under residual pressure (IRS PC). Poppet or flat-face are recommended for new applications.

Category: Tags: ,

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Agricultural

  • Mobile

Description

ISO B Interchange

FEATURES
  • Size range: 1/4” thru 1”
  • Port options: NPT
  • Interchanges with Agriculture/ISO 5675
  • Working pressure: 20-30 MPa/2900-4350 psi range
  • Carbon steel with zinc plating
  • Hardened steel nipple
  • Ball or poppet sealing valve
APPLICATIONS
  • Anywhere automatic shut off during disconnection is required
  • Where interchangeability with existing equipment is necessary
  • Agricultural equipment

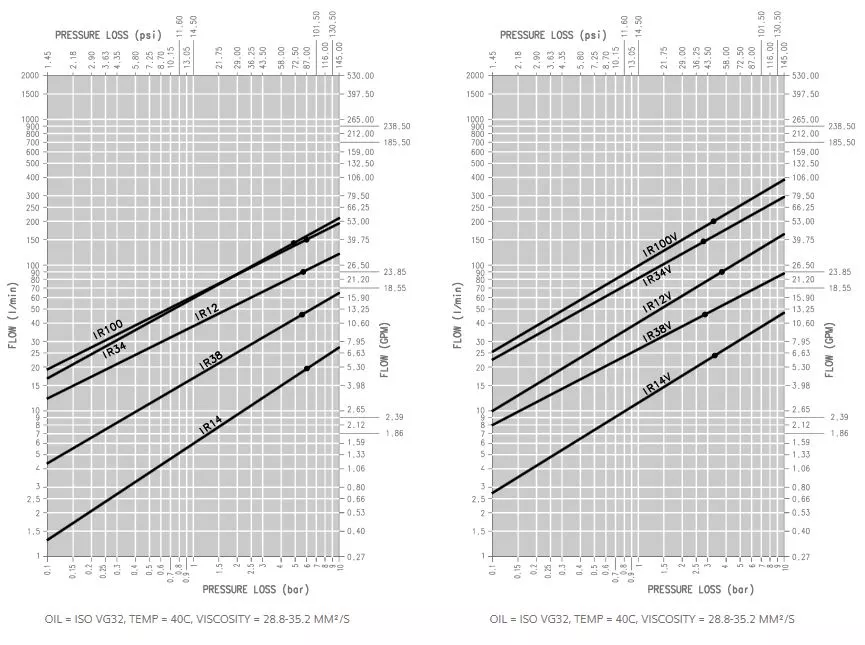

Pressure Drop

ag pressure drop chart
ag pressure drop diagram

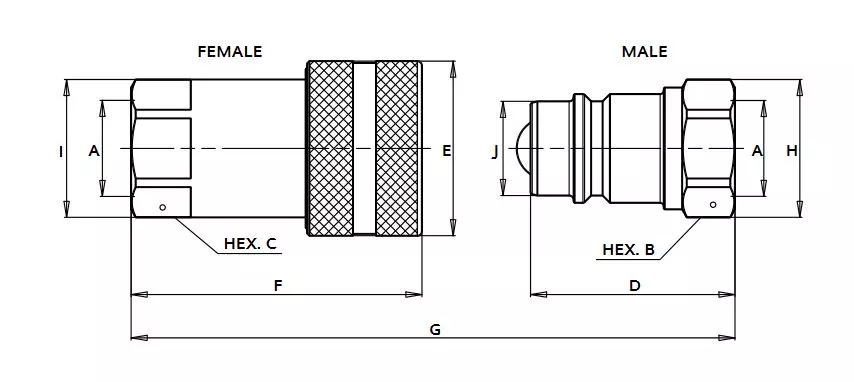

IR Size Diagram

ag size diagram

WEIGHT
DESC. BODY SIZE A UNIT B C D E F G H I J UNIT MALE FEMALE
IR14 1/4 1/4 mm 19.0 19.0 32.5 27.0 48.9 64.4 22.0 21.0 14.2 kg 0.040 0.125
inch 0.75 0.75 1.28 1.06 1.93 2.54 0.87 0.83 0.56 lb 0.09 0.28
IR38 3/8 3/8 mm 24.0 24.0 38.0 34.0 58.3 76.3 27.7 26.5 19.0 kg 0.080 0.222
inch 0.94 0.94 1.50 1.34 2.30 3.00 1.09 1.04 0.75 lb 0.18 0.49
IR12 1/2 1/2 mm 27.0 27.0 44.5 38.0 63.3 86.3 30.0 30.0 20.5 kg 0.090 0.277
inch 1.06 1.06 1.75 1.50 2.49 3.40 1.18 1.18 0.81 lb 0.20 0.61
IR34 3/4 3/4 mm 36.0 38.0 59.0 48.0 90.3 118.3 38.5 43.0 26.9 kg 0.211 0.699
inch 1.42 1.50 2.32 1.89 3.56 4.66 1.52 1.69 1.06 lb 0.47 1.54
IR100 1 1 mm 41.0 45.0 66.1 54.0 99.6 132.8 44.8 52.0 31.4 kg 0.301 0.894
inch 1.61 1.77 2.60 2.13 3.92 5.23 1.76 2.05 1.24 lb 0.66 1.97

IR Performance

MAX. OPERATING PRESSURE COUPLED BURST PRESSURE
COUPLED MALE FEMALE SPILLAGE*
DESCRIPTION SIZE ISO SIZE MPa psi MPa psi MPa psi MPa psi ml
IR Series
IR14 1/4 – 30 4350 100 14500 100 14500 100 14500 0.13
IR38 3/8 – 30 4350 100 14500 100 14500 90 13050 0.45
IR12 1/2 12.5 25 3625 80 11600 55 7975 55 7975 2.30
IR34 3/4 – 25 3625 100 14500 60 8700 90 13050 4.50
IR100 1 – 20 2900 80 11600 60 8700 80 11600 6.00

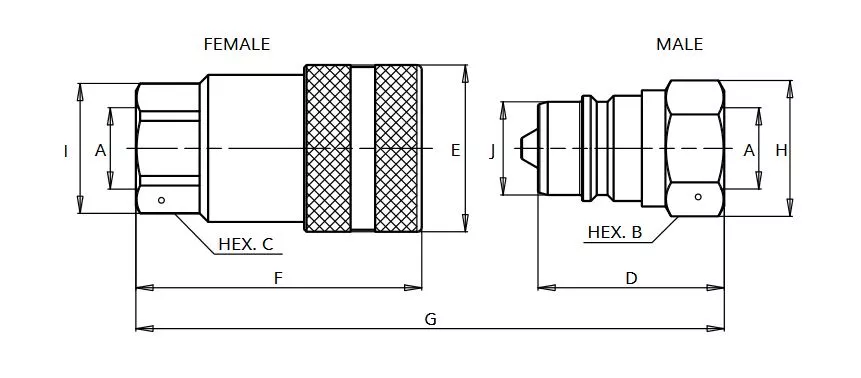

IRV Size Diagram

irv size diagram

WEIGHT
BODY SIZE A UNIT B C D E F G H I J UNIT MALE FEMALE
1/4 1/4 mm 19.0 19.0 32.5 27.0 50.4 65.9 22.0 21.0 14.2 kg 0.040 0.125
inch 0.75 0.75 1.28 1.06 1.98 2.59 0.87 0.83 0.56 lb 0.09 0.28
3/8 3/8 mm 24.0 24.0 38.0 34.0 58.3 76.3 27.7 26.5 19.0 kg 0.080 0.222
inch 0.94 0.94 1.50 1.34 2.30 3.00 1.09 1.04 0.75 lb 0.18 0.49
1/2 1/2 mm 27.0 27.0 44.5 38.0 63.3 86.3 29.0 30.0 20.5 kg 0.084 0.245
inch 1.06 1.06 1.75 1.50 2.49 3.40 1.14 1.18 0.81 lb 0.19 0.54
3/4 3/4 mm 36.0 38.0 59.0 48.0 90.3 118.3 38.5 43.0 26.9 kg 0.187 0.663
inch 1.42 1.50 2.32 1.89 3.56 4.66 1.52 1.69 1.06 lb 0.41 1.46
1 1 mm 41.0 45.0 64.1 54.0 97.6 128.8 44.8 52.0 31.4 kg 0.276 0.860
inch 1.61 1.77 2.52 2.13 3.84 5.07 1.76 2.05 1.24 lb 0.61 1.90

IRV Performance

MAX. OPERATING PRESSURE COUPLED BURST PRESSURE
COUPLED MALE FEMALE SPILLAGE*
DESCRIPTION SIZE ISO SIZE MPa psi MPa psi MPa psi MPa psi ml
IRV Series
IR14V 1/4 – 30 100 4350 14500 100 14500 100 14500 0.33
IR38V 3/8 – 30 100 4350 14500 100 14500 100 14500 1.30
IR12V 1/2 12.5 25 3625 80 11600 80 11600 100 14500 2.10
IR34V 3/4 – 25 3625 100 14500 90 13050 100 14500 4.20
IR100V 1 – 20 2900 80 11600 80 11600 80 11600 5.50

IRV NPT and SAE Thread Poppet Style Interchange Coupling

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
IRV NPT THREAD
COUPLER 1/4 1/4 NPT 800101000 F. IR 14V NPT
NIPPLE 1/4 1/4 NPT 800101001 M. IR 14V NPT
COUPLER 3/8 3/8 NPT 800101002 F. IR 38V NPT
NIPPLE 3/8 3/8 NPT 800101003 M. IR 38V NPT
COUPLER 1/2 1/2 NPT 800501004 F. IR 12V NPT
NIPPLE 1/2 1/2 NPT 800501005 M. IR 12V NPT
COUPLER 3/4 3/4 NPT 800101004 F. IR 34V NPT
NIPPLE 3/4 3/4 NPT 800101005 M. IR 34V NPT
COUPLER 1 1 NPT 800101006 F. IR 100V NPT
NIPPLE 1 1 NPT 800101007 M. IR 100V NPT
COUPLER 3/4 3/4 NPT 820001022 F. IR 34V FA NPT*
NIPPLE 3/4 3/4 NPT 820001023 M. IR 34V FA NPT*
IRV SAE THREAD
COUPLER 1/4 3/8 SAE 800104000 F. IR 14V 38 SAE
NIPPLE 1/4 3/8 SAE 800104001 M. IR 14V 38 SAE

* Faster Interchange Only

IRS V Poppet Valve | Agriculture Push / Pull Sleeve

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
VP NPT THREAD
COUPLER 1/2 1/2 NPT 800401002 F. IRS 12VA NPT
COUPLER 1/2 1/2 SAE 804304004 F. I 12VA SAE

IRS PC Poppet Valve | Agriculture Push / Pull Sleeve | Connect Under Pressure

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
VP NPT THREAD
COUPLER 1/2 1/2 NPT 800401004 F. IRS 12VA PC NPT
COUPLER 1/2 1/2 SAE 804304002 F. I 12VA PC SAE

RS TIC Ball Valve NPT Thread Agriculture Nipple with Seal Retainer

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
IR TIC BALL VALVE NPT THREAD
NIPPLE 1/2 1/2 NPT 800001011 M. IR 12 TIC NPT

IR Ball Valve NPT Thread Poppet Style Interchange Coupling

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
IR BALL VALVE NPT THREAD
COUPLER 1/4 1/4 NPT 800001000 F. IR 14 NPT
NIPPLE 1/4 1/4 NPT 800001001 M. IR 14 NPT
COUPLER 3/8 3/8 NPT 800001002 F. IR 38 NPT
NIPPLE 3/8 3/8 NPT 800001003 M. IR 38 NPT
COUPLER 1/2 1/2 NPT 800001004 F. IR 12 NPT
NIPPLE 1/2 1/2 NPT 800001005 M. IR 12 NPT
COUPLER 3/4 3/4 NPT 800001006 F. IR 34 NPT
NIPPLE 3/4 3/4 NPT 800001007 M. IR 34 NPT
COUPLER 1 1 NPT 800001008 F. IR 100 NPT
NIPPLE 1 1 NPT 800001009 M. IR 100 NPT
COUPLER 3/4 3/4 NPT 820001020 F. IR 34 FA NPT*
NIPPLE 3/4 3/4 NPT 820001021 M. IR 34 FA NPT*

* Faster Interchange Only

IRS Ball Valve NPT Thread Poppet Valve | Agriculture Push/Pull Sleeve

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
IRS BALL VALVE NPT THREAD
COUPLER 1/2 1/2 NPT 800301002 F. IRS 12A NPT

IR and IRV Accessories Coupler Dust Plug | Nipple Dust Cap

PART ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
IR & IRV COUPLER DUST PLUGS IR & IRV COUPLER DUST CAPS
1/4 815000000 CAP F. IR14/IR14V 815000001 CAP M. IR14/IR14V
3/8 815000002 CAP F. IR38/IR38V 815000003 CAP M. IR38/IR38V
1/2 815000004 CAP F. IR12/IRS12/F. BIR12 815000005 CAP M. IR1/M. BIR12
3/4 815000006 CAP F. IR 34/IR34V 815000007 CAP M. IR34/IR34V
1 815000008 CAP F. IR 100/IR100V 815000009 CAP M. IR100/IR100V
