iso b series

IRB I IRBO I IRBX SERIES

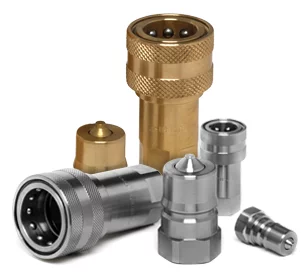

The IRB Series Quick Couplings are interchangeable to ISO B standard (ISO 7241-B). The IRB is offered in three different high quality materials to meet different application challenges—IRB carbon steel with Nitrile seals, IRBO brass with Viton seals, and IRBX 316 stainless steel with Viton seals. The entire series features compact design, AISI 302 stainless steel springs, and PTFE anti-extrusion rings.

Category: Tags: , , , , ,

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Agricultural

  • Automotive

  • Coiled tubing

  • Industrial

  • Mobile

  • Oil & Gas

Description

ISO B Interchange

FEATURES
  • Size range: 1/4” thru 1”
  • Port options: NPT, BSP
  • Interchanges with ISO B, Parker 60, Aeroquip FD45, Faster HNV
  • IRB working pressure: 18-35 MPa/4000-5075 psi range
  • IRBO working pressure: 10-20 MPa/1450-2900 psi range
  • IRBX working pressure: 12.5-25 MPa/1813-3625 psi range
APPLICATIONS
  • Anywhere a compact size and high quality material are required
  • Industrial process applications, agricultural equipment, oil & gas industry

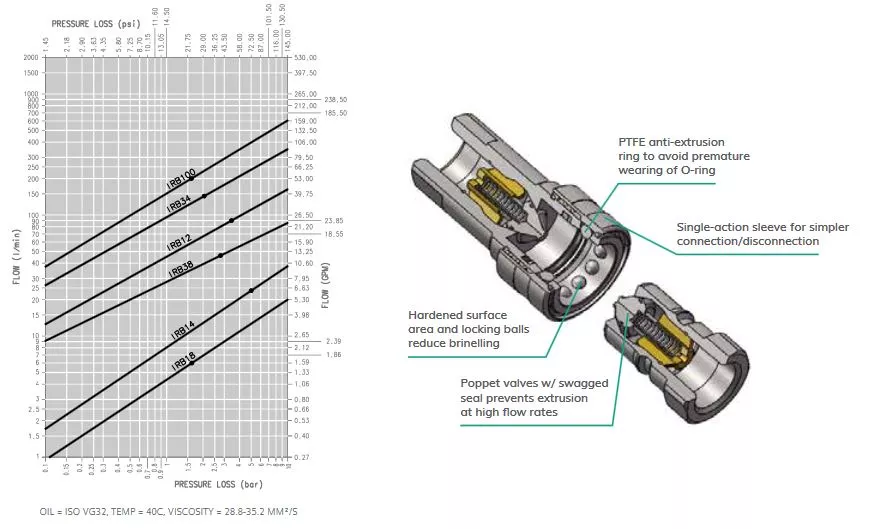

Pressure Drop

irb pressure drop

Performance

MAX. OPERATING
PRESSURE COUPLED		 BURST PRESSURE
COUPLED MALE FEMALE SPILLAGE*
DESCRIPTION SIZE ISO SIZE MPa psi MPa psi MPa psi MPa psi ml
ISO B IRB STEEL
IRB18 1/8 5.0 35 5075 120 17400 120 17400 120 17400 0.18
IRB14 1/4 6.3 35 5075 100 14500 100 14500 100 14500 0.33
IRB38 3/8 10.0 30 4350 100 14500 100 14500 100 14500 2.20
IRB12 1/2 12.5 28 4060 100 14500 100 14500 100 14500 3.00
IRB34 3/4 20.0 23 4000 100 14500 100 14500 100 14500 9.40
IRB100 1 25.0 18 4000 80 11600 80 11600 80 11600 14.00
ISO B IRBO BRASS
IRBO18 1/8 5.0 20 2900 100 14500 100 14500 100 14500 0.18
IRBO14 1/4 6.3 20 2900 100 14500 100 14500 100 14500 0.33
IRBO38 3/8 10.0 16 2320 80 11600 70 10150 80 11600 2.20
IRBO12 1/2 12.5 16 2320 80 11600 70 10150 80 11600 3.00
IRBO34 3/4 20.0 12,5 1813 60 8700 45 6525 60 8700 9.40
IRBO100 1 25.0 10 1450 40 5800 40 5800 40 5800 14.00
ISO B IRBX 316 STAINLESS STEEL
IRBX18 1/8 5.0 25 3625 140 20300 140 20300 140 20300 0.18
IRBX14 1/4 6.3 25 3625 140 20300 140 20300 140 20300 0.33
IRBX38 3/8 10.0 20 2900 100 14500 100 14500 100 14500 2.20
IRBX12 1/2 12.5 20 2900 100 14500 100 14500 100 14500 3.00
IRBX34 3/4 20.0 16 2320 80 11600 80 11600 80 11600 9.40
IRBX100 1 25.0 12,5 1813 60 8700 60 8700 60 8700 14.00

* Spillage is an indicative value of the fluid loss per couple-uncouple cycle.

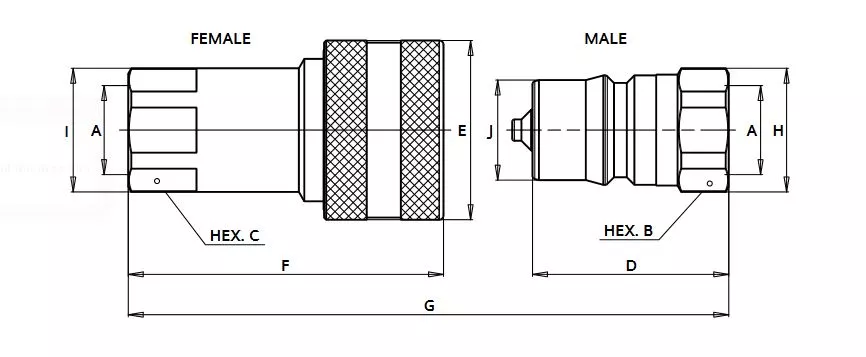

Size Diagram

irb size diagram

WEIGHT
DESC. BODY SIZE A UNIT B C D E F G H I J UNIT MALE FEMALE
IRB18 1/8 1/8 mm 14.0 14.0 30.0 23.0 48.8 60.5 15.8 15.8 10.8 kg 0.018 0.068
inch 0.55 0.55 1.18 0.91 1.92 2.38 0.62 0.62 0.43 lb 0.04 0.15
IRB14 1/4 1/4 mm 19.0 19.0 35.0 27.0 57.0 70.7 20.8 21.2 14.2 kg 0.035 0.120
inch 0.75 0.75 1.38 1.06 2.24 2.78 0.82 0.83 0.56 lb 0.08 0.26
IRB38 3/8 3/8 mm 24.0 24.0 41.0 34.0 66.0 82.7 26.0 27.0 19.1 kg 0.068 0.220
inch 0.94 0.94 1.61 1.34 2.60 3.26 1.02 1.06 0.75 lb 0.15 0.49
IRB12 1/2 1/2 mm 27.0 27.0 46.0 42.0 73.9 92.6 29.0 29.0 23.5 kg 0.102 0.323
inch 1.06 1.06 1.81 1.65 2.91 3.65 1.14 1.14 0.93 lb 0.22 0.71
IRB34 3/4 3/4 mm 36.0 36.0 55.0 50.0 90.1 111.1 38.5 38.5 31.4 kg 0.203 0.562
inch 1.42 1.42 2.17 1.97 3.55 4.37 1.52 1.52 1.24 lb 0.45 1.24
IRB100 1 1 mm 41.0 41.0 66.0 60.0 106.2 133.2 44.8 44.8 37.7 kg 0.328 0.863
inch 1.61 1.61 2.60 2.36 4.18 5.24 1.76 1.76 1.48 lb 0.72 1.90

ISO B IRBX NPT Thread Poppet Style Interchange Coupling | Stainless Steel

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE PART DESCRIPTION
ISO B IRBX NPT THREAD
COUPLER 1/8 1/8 NPT 804601100 F. IRBX 18 NPT
NIPPLE 1/8 1/8 NPT 804601101 M. IRBX 18 NPT
COUPLER 1/4 1/4 NPT 804601102 F. IRBX 14 NPT
NIPPLE 1/4 1/4 NPT 804601103 M. IRBX 14 NPT
COUPLER 3/8 3/8 NPT 804601104 F. IRBX 38 NPT
NIPPLE 3/8 3/8 NPT 804601105 M. IRBX 38 NPT
COUPLER 1/2 1/2 NPT 804601106 F. IRBX 12 NPT
NIPPLE 1/2 1/2 NPT 804601107 M. IRBX 12 NPT
COUPLER 3/4 3/4 NPT 804601108 F. IRBX 34 NPT
NIPPLE 3/4 3/4 NPT 804601109 M. IRBX 34 NPT
COUPLER 1 1 NPT 804601110 F. IRBX 100 NPT
NIPPLE 1 1 NPT 804601111 M. IRBX 100 NPT

ISO B IRB NPT and SAE Thread Poppet Style Interchange Coupling | Steel

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE PART DESCRIPTION
ISO B IRB NPT THREAD
COUPLER 1/8 1/8 NPT 800601000 F. IRB 18 NPT
NIPPLE 1/8 1/8 NPT 800601001 M. IRB 18 NPT
COUPLER 1/4 1/4 NPT 800601002 F. IRB 14 NPT
NIPPLE 1/4 1/4 NPT 800601003 M. IRB 14 NPT
COUPLER 3/8 3/8 NPT 800601004 F. IRB 38 NPT
NIPPLE 3/8 3/8 NPT 800601005 M. IRB 38 NPT
COUPLER 1/2 1/2 NPT 800601006 F. IRB 12 NPT
NIPPLE 1/2 1/2 NPT 800601007 M. IRB 12 NPT
COUPLER 3/4 3/4 NPT 800601008 F. IRB 34 NPT
NIPPLE 3/4 3/4 NPT 800601009 M. IRB 34 NPT
COUPLER 1 1 NPT 800601010 F. IRB 100 NPT
NIPPLE 1 1 NPT 800601011 M. IRB 100 NPT
IRB SAE THREAD
COUPLER 1/4 3/8 SAE 800604202 F. IRB 14E 3/8 SAE
NIPPLE 1/4 3/8 SAE 800604201 M. IRB 14E 3/8 SAE

ISO B IRBO NPT Thread Poppet Style Interchange Coupling | Brass

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE PART DESCRIPTION
ISO B IRBO NPT THREAD
COUPLER 1/8 1/8 NPT 804501100 F. IRBOV 18 NPT
NIPPLE 1/8 1/8 NPT 804501101 M. IRBOV 18 NPT
COUPLER 1/4 1/4 NPT 804501102 F. IRBOV 14 NPT
NIPPLE 1/4 1/4 NPT 804501103 M. IRBOV 14 NPT
COUPLER 3/8 3/8 NPT 804501104 F. IRBOV 38 NPT
NIPPLE 3/8 3/8 NPT 804501105 M. IRBOV 38 NPT
COUPLER 1/2 1/2 NPT 804501106 F. IRBOV 12 NPT
NIPPLE 1/2 1/2 NPT 804501107 M. IRBOV 12 NPT
COUPLER 3/4 3/4 NPT 804501108 F. IRBOV 34 NPT
NIPPLE 3/4 3/4 NPT 804501109 M. IRBOV 34 NPT
COUPLER 1 1 NPT 804501110 F. IRBOV 100 NPT
NIPPLE 1 1 NPT 804501111 M. IRBOV 100 NPT

ISO B IRB Series Accessories Coupler Dust Plug | Nipple Dust Cap

PART ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
ISO B IRB DUST CAP ISO B IRB DUST PLUG
1/4 815000031 CAP M. IRB18 815000030 CAP F. IRB18
1/4 815000033 CAP M. IRB14 815000032 CAP F. IRB14
3/8 815000035 CAP M. IRB38 815000034 CAP F. IRB38
1/2 815000037 CAP M. IRB12 815000036 CAP F. IRB12
3/4 815000039 CAP M. IRB34 815000038 CAP F. IRB34
1 815000041 CAP M. IRB100 815000040 CAP F. IRB100

Repair Kits

ORDER CODE DESCRIPTION ORDER CODE DESCRIPTION
ISO B IRB SERIES ISO B IRB SERIES (CONT.)
815700202 KIT F. IRB18 815700210 KIT F. IRB34
815700204 KIT F. IRB14 815700212 KIT F. IRB100
815700206 KIT F. IRB38 815700211 KIT M./F. IRB34
815700208 KIT F. IRB12 815700213 KIT M./F. IRB100
