PPC Series

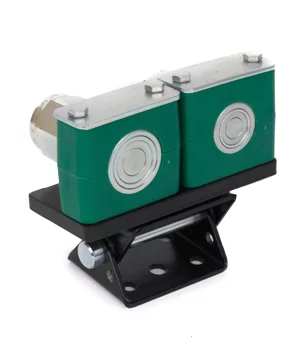

The PPC Series (Push-Pull Coupler) is built on the A Premier platform, featuring breakaway capabilities that engage when the coupler is unintentionally left coupled, preventing leakage and damage. Its clamp fixture is designed to be mounted to the structure; when pulled apart in line with the coupler, the PPC coupler will break away. For mobile applications: the APM series nipple is recommended with this series.

Category: Tags: , ,

Speak to a Specialist:
847-956-9720 or Via Email

Description

Features
  • Size range: 3/8” thru 3/4”
  • Port options: NPT, SAE
  • Interchanges with ISO 16028
  • Simple, easy-to-use push/pull connection
  • Breakaway design automatically disconnects in case of accidental disconnection of the hydraulic hose
  • Prevents leakage and damage
Applications
  • Refuse compactor/power units and dump trailer connections
  • Snow plow equipment
  • Agricultural implements
Mobile
Industrial

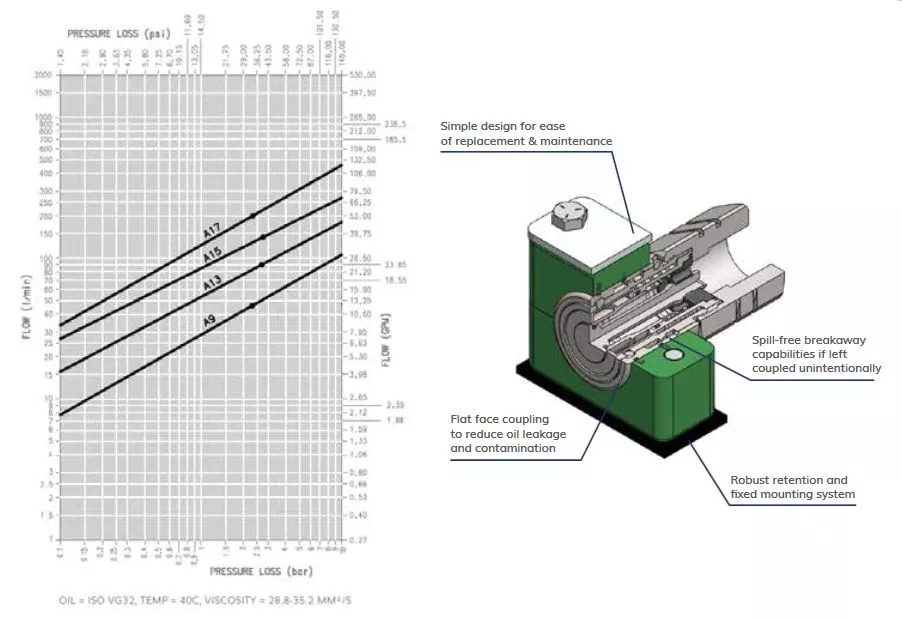

Pressure Drop

Order Codes

BODY SIZE PORT SIZE THREAD TYPE ORDER CODE COUPLER DESCRIPTION
3/8 1/2 SAE PPC0608FO A9 PUSH PULL FF 3/8 X 1/2 SAE
1/2 1/2 NPT PPC0808FP A13 PUSH PULL FF 1/2 X 1/2 NPT
1/2 3/4 SAE PPC0812FO A13 PUSH PULL FF 1/2 X 3/4 SAE
1/2 3/4 NPT PPC0812FP A13 PUSH PULL FF 1/2 X 3/4 NPT
5/8 3/4 SAE PPC1012FO A15 PUSH PULL FF 5/8 X 3/4 SAE
5/8 3/4 NPT PPC1012FP A15 PUSH PULL FF 5/8 X 3/4 NPT
3/4 3/4 NPT PPC1212FP A17 PUSH PULL FF 3/4 X 3/4 NPT
3/4 1 NPT PPC1216FP A17 PUSH PULL FF 3/4 X 1 NPT

Additional information

Body Size

, , , ,

Material

Port Options

,

Port Size

, , , ,

Valve Style

Working Pressure
