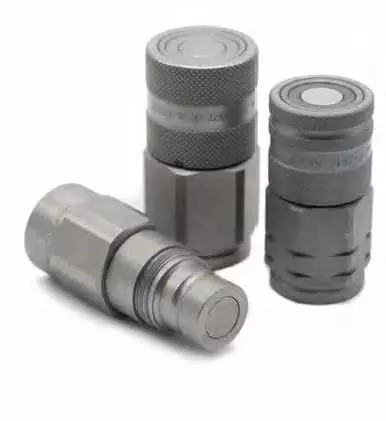

stucchi a zn

A-ZN SERIES

The A-ZN Series Flat Face Couplings utilize specialized plating for high corrosion resistance, designed to exceed the ISO salt spray test. Standard zinc plating is rated for 400 hours before red spotting. The Z version offers higher pressure and superior flow ratings with a lower pressure drop compared to competitors’ products. The ZN version plating is designed to exceed 1000 hours before the appearance of red spotting in the same ISO salt spray test.

Category: Tags: , , , , , , , , , , ,

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Aerospace

  • Agricultural

  • Automotive

  • Coiled tubing

  • Demolition

  • Die Casting

  • Industrial

  • Mobile

  • Oil & Gas

  • Railroad

  • Snow & Ice

  • Steel

Description

Special Zinc Treatment

Features
  • Size range: 3/8” thru 5/8”
  • Port options: NPT Interchanges with ISO 16028
  • Exceeds impulse test of ISOA-7241 test
  • Lock system stops unwanted disconnect
  • Modular structure for multiple port option
  • Hardened steel, 12 to 20 balls reduce brinelling
Applications
  • Medium- to high-corrosion environments
  • Anywhere fluid loss and hydraulic circuit contamination need to be eliminated
  • Snow removal, mobile construction, agriculture, and mining operations

Pressure Drop

a zn pressure drop

Burst Pressure
Max Operating
Pressure Coupled		 COUPLED MALE FEMALE Spillage *
Description Size ISO Size MPa psi MPa psi MPa psi MPa psi ml
A9 3/8 10.0 35 5075 100 14500 100 14500 100 14500 0.012
A13 1/2 12.5 33 4785 100 14500 100 14500 100 14500 0.020
A15 5/8 16.0 33 4785 100 14500 100 14500 100 14500 0.026

* Spillage is an indicative value of the fluid loss per couple-uncouple cycle.

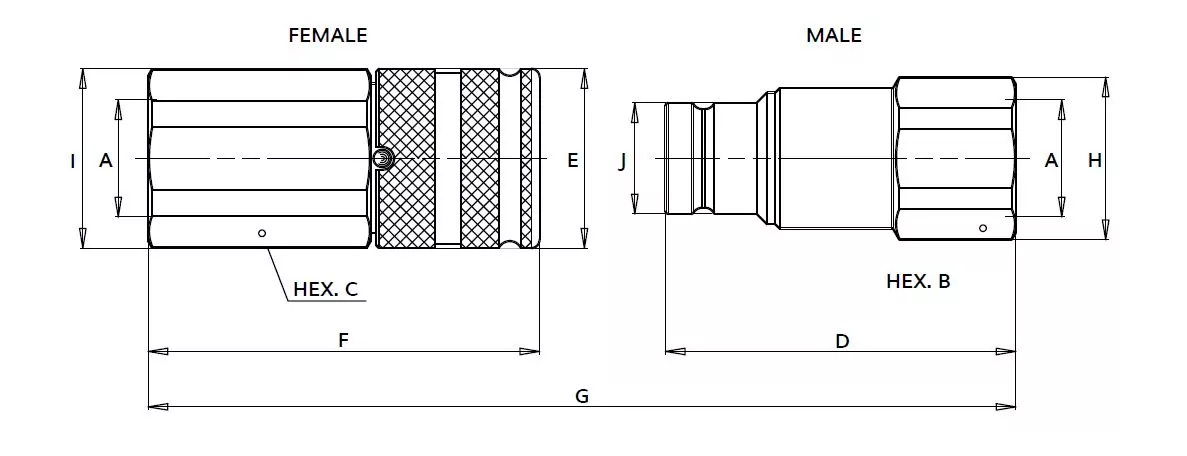

Size Diagram

a zn size diagram

WEIGHT
DESC. BODY SIZE A UNIT B C D E F G H I J UNIT MALE FEMALE
A9 3/8 3/8 mm 27.0 30.0 60.0 32.0 64.8 108.8 29.0 32.0 19.7 kg 0.150 0.273
inch 1.06 1.18 2.36 1.26 2.55 4.28 1.14 1.26 0.78 lb 0.33 0.60
A9 3/8 1/2 mm 27.0 30.0 62.5 32.0 69.8 116.3 29.0 32.0 19.7 kg 0.138 0.278
inch 1.06 1.18 2.46 1.26 2.75 4.58 1.14 1.26 0.78 lb 0.30 0.61
A13 1/2 1/2 mm 36.0 36.0 68.0 38.0 76.8 127.5 40.0 40.0 24.5 kg 0.295 0.452
inch 1.42 1.42 2.68 1.50 3.02 5.02 1.57 1.57 0.96 lb 0.65 1.00
A13 1/3 3/4 mm 36.0 36.0 70.5 38.0 83.8 137.0 40.0 40.0 24.5 kg 0.273 0.469
inch 1.42 1.42 2.78 1.50 3.30 5.39 1.57 1.57 0.96 lb 0.60 1.03
A15 5/8 3/4 mm 36.0 41.0 73.0 42.0 84.0 139.4 38.5 44.8 27.0 kg 0.292 0.631
inch 1.42 1.61 2.87 1.65 3.31 5.49 1.52 1.76 1.06 lb 0.64 1.39

A-ZN Series NPT Thread Flat Face with Iron Zinc Plating | ISO 16028

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE PART DESCRIPTION
A-ZN NPT THREAD
COUPLER 3/8 3/8 NPT 809701006 F. A9ZN 3/8 NPT
NIPPLE 3/8 3/8 NPT 809701007 M. A9ZN 3/8 NPT
COUPLER 1/5 1/2 NPT 809701008 F. A13ZN 1/2 NPT
NIPPLE 1/5 1/2 NPT 809701009 M. A13ZN 1/2 NPT
COUPLER 5/8 3/4 NPT 809701012 F. A15ZN 3/4 NPT
NIPPLE 5/8 3/4 NPT 809701013 M. A15ZN 3/4 NPT

A-ZN Series Accessories Coupler Dust Cap | Nipple Dust Cap

Body Size Port Size Order Code Description Order Code Description
Coupler/Female Dust Cap Nipple/Male Dust Cap
3/8 3/8 815100003 CAP M. FIRG38/A9
3/8 3/8 & 1/2 815100002 CAP F. FIRG38/A9/FIRG12 815100005 CAP M. FIRG12/A9
1/2 1/2 815100004 CAP F. FIRG12A/A13 815100007 CAP M. FIRG12A/A13
1/2 1/2 & 1/4 815100006 CAP F. FIRG34/A13 815100009 CAP M. FIRG34/A13
5/8 3/4 815100008 CAP F. FIRG34B/A15 815100011 CAP M. FIRG34B/A15

Repair Kits

Order Code Description
A Premier Series
815700097 KIT M. A9
815700099 KIT M. A13
815700101 KIT M. A15

Additional information

Body Size

, ,

Port Options

Port Size

, ,

Valve Style
