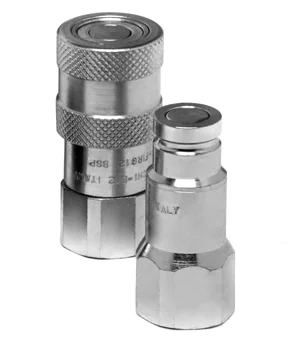

FIRG SERIES

The FIRG Flat Face Series, the original ISO 16028 interchangeable coupling, continues to offer good performance, long life and competitive pricing. The integrated sealing mechanism greatly reduces premature wear caused by movement between coupler and nipple parts affected by impulse pressure and the weight of the hoses and tubing when the coupling is in horizontal position.

Category: Tags: , , ,

Speak to a Specialist:
847-956-9720 or Via Email

Description

Features
  • Size range: 1/4” thru 2”
  • Port options: NPT, BSP
  • Interchanges with ISO 16028
  • Working pressure: 20-30 MPa/2900-4350 psi range
  • Non-spill design avoids fluid loss during connection/disconnection
  • Minimal air inclusion during connection
  • Tight tolerances ensure equal loading of couplers
Applications
  • Anywhere fluid loss and hydraulic circuit contamination need to be reduced or eliminated
  • Mobile construction, agriculture, and mining operations
  • General industrial plants
Mobile
Oil & Gas
Industrial
Agricultural

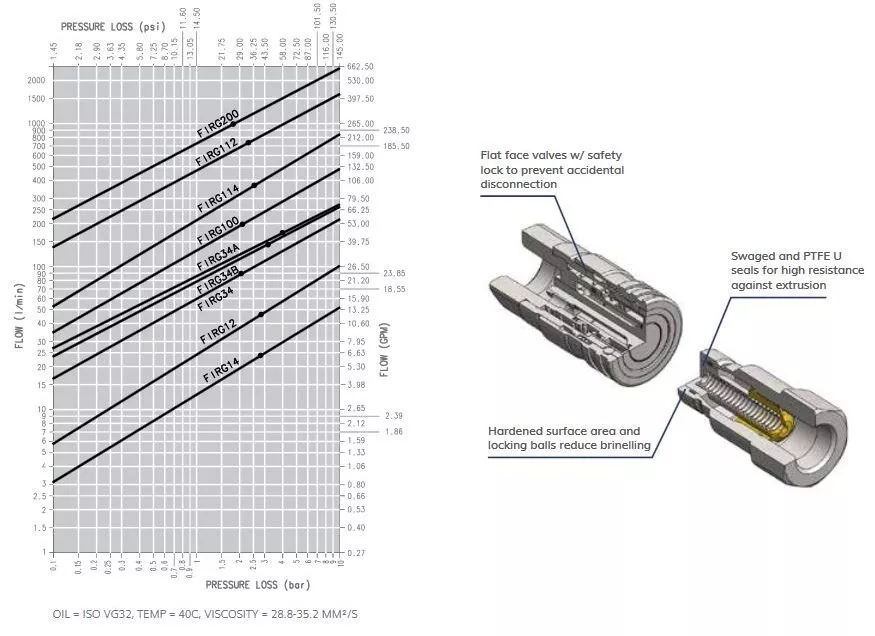

Pressure Drop



Burst Pressure
Max Operating
Pressure Coupled		 COUPLED MALE FEMALE Spillage *
Description Size ISO Size MPa psi MPa psi MPa psi MPa psi ml
FIRG14 1/4 6.3 30 4350 120 17400 126 18270 48 6960 0.006
FIRG38-12 3/8 10.0 30 4350 120 17400 120 17400 48 6960 0.012
FIRG12A-34 1/2 12.5 25 3625 100 14500 100 14500 40 5800 0.020
FIRG34B 5/8 16.0 25 3625 100 14500 88 12760 40 5800 0.026
FIRG34A 3/4 19.0 33 4785 100 14500 100 14500 100 14500 0.032
FIRG100 3/4 19.0 25 3625 100 14500 80 11600 40 5800 0.032
FIRG114 1/2 25.0 25 3625 100 14500 80 11600 40 5800 0.035
FIRG112 1 1/2 – 20 2900 80 11600 80 11600 32 4640 0.050
FIRG200 2 – 20 2900 80 11600 64 9280 32 4640 0.100

* Spillage is an indicative value of the fluid loss per couple-uncouple cycle.

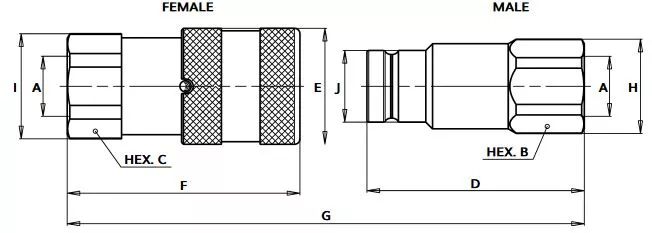

Size Diagram

WEIGHT
DESC. BODY SIZE A UNIT B C D E F G H I J UNIT MALE FEMALE
FIRG14 1/4 1/4 mm 22.0 22.0 47.9 28.0 48.1 85.2 23.8 23.8 16.1 kg 0.086 0.140
inch 0.87 0.87 1.89 1.10 1.89 3.35 0.94 0.94 0.63 lb 0.19 0.31
FIRG38 3/8 3/8 mm 24.0 27.0 60.0 32.0 64.2 108.7 26.0 29.0 19.7 kg 0.121 0.235
inch 0.94 1.06 2.36 1.26 2.53 4.28 1.02 1.14 0.78 lb 0.27 0.52
FIRG12 3/8 1/2 mm 27.0 27.0 62.5 32.0 69.2 116.2 29.0 29.0 19.7 kg 0.128 0.237
inch 1.06 1.06 2.46 1.26 2.72 4.57 1.14 1.14 0.78 lb 0.28 0.52
FIRG12A 1/2 1/2 mm 32.0 32.0 68.0 38.0 73.8 124.5 33.8 33.8 24.5 kg 0.233 0.375
inch 1.26 1.26 2.68 1.50 2.91 4.90 1.33 1.33 0.96 lb 0.51 0.83
FIRG34 1/2 3/4 mm 36.0 36.0 70.5 38.0 80.8 134.0 38.5 38.5 24.5 kg 0.227 0.413
inch 1.42 1.42 2.78 1.50 3.18 5.28 1.52 1.52 0.96 lb 0.50 0.91
FIRG34B 5/8 3/4 mm 36.0 36.0 70.5 42.0 78.5 131.4 38.5 38.5 27.0 kg 0.268 0.479
inch 1.42 1.42 2.78 1.65 3.09 5.17 1.52 1.52 1.06 lb 0.59 1.06
FIRG34A 3/4 3/4 mm 41.0 41.0 82.3 48.0 88.7 149.0 44.8 44.8 30.0 kg 0.445 0.750
inch 1.61 1.61 3.24 1.89 3.49 5.87 1.76 1.76 1.18 lb 0.98 1.65
FIRG100 3/4 1 mm 45.0 45.0 82.3 48.0 93.2 153.5 47.8 47.8 30.0 kg 0.394 0.767
inch 1.77 1.77 3.24 1.89 3.67 6.04 1.88 1.88 1.18 lb 0.87 1.69
FIRG114 1 1 1/4 mm 55.0 55.0 89.8 55.0 106.0 172.8 59.8 59.8 36.0 kg 0.641 1.215
inch 2.17 2.17 3.54 2.17 4.17 6.80 2.35 2.35 1.42 lb 1.41 2.68
FIRG112 1 1/2 1 1/2 mm 65.0 65.0 111.1 80.0 132.4 214.9 69.8 72.0 57.0 kg 1.665 2.820
inch 2.56 2.56 4.37 3.15 5.21 8.46 2.75 2.83 2.24 lb 3.67 6.22
FIRG200 2 2 mm 75.0 80.0 123.8 100.0 156.6 241.5 83.5 88.5 73.0 kg 2.259 5.100
inch 2.95 3.15 4.87 3.94 6.17 9.51 3.29 3.48 2.87 lb 4.98 11.24
Body Size Port Size Order Code Description Order Code Description
Coupler/Female Dust Cap Nipple/Male Dust Cap
1/4 1/4 815100000 CAP F. FIRG14/A7 815100001 CAP M. FIRG14/A7
3/8 3/8 ——- ———— 815100003 CAP M. FIRG38/A9
3/8 3/8 & 1/2 815100002 CAP F. FIRG38/A9/FIRG12 815100005 CAP M. FIRG12/A9
1/2 1/2 815100004 CAP F. FIRG12A/A13 815100007 CAP M. FIRG12A/A13
1/2 1/2 & 3/4 815100006 CAP F. FIRG34/A13 815100009 CAP M. FIRG34/A13
5/8 3/4 815100008 CAP F. FIRG34B/A15 815100011 CAP M. FIRG34B/A15
3/4 3/4 815100010 CAP F. FIRG100/A17 815100013 CAP M. FIRG100/A17
1 1 815100012 CAP F. FIRG114/A21 815100015 CAP M. FIRG114/A21
1 1/4 1 1/4 815205020 CAP F. A25 815205021 CAP M. A25
1 1/2 1 1/2 815100014 CAP F. FIRG112/A30 815100017 CAP M. FIRG 112/A30
2 2 815100016 CAP F. FIRG 200 815100019 CAP M. FIRG 200

FIRG NPT and SAE Thread ISO 16028

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE PART DESCRIPTION
FIRG NPT THREAD
COUPLER 1/4 1/4 NPT 800801000 F. FIRG 14 NPT
NIPPLE 1/4 1/4 NPT 800801001 M. FIRG 14 NPT
COUPLER 3/8 1/2 NPT 800801002 F. FIRG 12 NPT
NIPPLE 3/8 1/2 NPT 800801003 M. FIRG 12 NPT
COUPLER 3/8 3/8 NPT 800801004 F. FIRG 38 NPT
NIPPLE 3/8 3/8 NPT 800801005 M. FIRG 38 NPT
COUPLER 1/2 1/2 NPT 800801006 F. FIRG 12AD NPT
NIPPLE 1/2 1/2 NPT 800801007 M. FIRG 12A NPT
COUPLER 1/2 3/4 NPT 800801008 F. FIRG 34D NPT
NIPPLE 1/2 3/4 NPT 800801009 M. FIRG 34 NPT
COUPLER 5/8 3/4 NPT 800801010 F. FIRG 34BD NPT
NIPPLE 5/8 3/4 NPT 800801011 M. FIRG 34B NPT
COUPLER 3/4 3/4 NPT 800801020 F. FIRG 34A NPT
NIPPLE 3/4 3/4 NPT 800801021 M. FIRG 34A NPT
COUPLER 3/4 1 NPT 800801012 F. FIRG 100 NPT
NIPPLE 3/4 1 NPT 800801013 M. FIRG 100 NPT
COUPLER 1 1 1/4 NPT 800801014 F. FIRG 1 1/4 NPT
NIPPLE 1 1 1/4 NPT 800801015 M. FIRG 1 1/4 NPT
COUPLER 1 1/2 1 1/2 NPT 800801016 F. FIRG 1 1/2 NPT
NIPPLE 1 1/2 1 1/2 NPT 800801017 M. FIRG 1 1/2 NPT
COUPLER 2 2 NPT 800801018 F. FIRG 200 NPT
NIPPLE 2 2 NPT 800801019 M. FIRG 200 NPT
FIRG SAE THREAD
COUPLER 1/4 3/8 SAE 800804000 F. FIRG 14 3/8 SAE
NIPPLE 1/4 3/8 SAE 800804001 M. FIRG 14 3/8 SAE
COUPLER 3/8 1/2 SAE 800804002 F. FIRG 38 1/2 SAE
NIPPLE 3/8 1/2 SAE 800804003 M. FIRG 38 1/2 SAE
COUPLER 3/8 5/8 SAE 800804004 F. FIRG 12 5/8 SAE
NIPPLE 3/8 5/8 SAE 800804005 M. FIRG 12 5/8 SAE
COUPLER 1/2 5/8 SAE 800804006 F. FIRG 12A 5/8 SAE
NIPPLE 1/2 5/8 SAE 800804007 M. FIRG 12A 5/8 SAE
COUPLER 1/2 3/4 SAE 800804008 F. FIRG 34D SAE
NIPPLE 1/2 3/4 SAE 800804009 M. FIRG 34 SAE
COUPLER 5/8 3/4 SAE 800804010 F. FIRG 34BD SAE
NIPPLE 5/8 3/4 SAE 800804011 M. FIRG 34B SAE
COUPLER 3/4 3/4 SAE 800804020 F. FIRG 34A SAE
NIPPLE 3/4 3/4 SAE 800804021 M. FIRG 34A SAE
COUPLER 3/4 1 SAE 800804012 F. FIRG 100 SAE
NIPPLE 3/4 1 SAE 800804013 M. FIRG 100 SAE
COUPLER 1 1 1/4 SAE 800804014 F. FIRG 1 1/4 SAE
NIPPLE 1 1 1/4 SAE 800804015 M. FIRG 1 1/4 SAE
COUPLER 1 1/2 1 1/2 SAE 800804016 F. FIRG 1 1/2 SAE
NIPPLE 1 1/2 1 1/2 SAE 800804017 M. FIRG 1 1/2 SAE
COUPLER 2 2 SAE 800804018 F. FIRG 200 SAE
NIPPLE 2 2 SAE 800804019 M. FIRG 200 SAE

Repair Kits

ORDER CODE DESCRIPTION
FIRG SERIES
815700001 KIT M. FIRG 14
815700003 KIT M. FIRG 38/12
815700005 KIT M. FIRG 12A/34
815700007 KIT M. FIRG 34B
815700009 KIT M. FIRG 100
815700011 KIT M. FIRG 114
815700013 KIT M. FIRG 112
815700015 KIT M. FIRG 200
