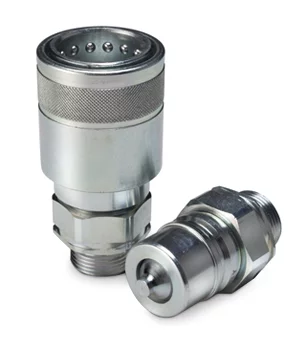

Description
ISO A Interchange
FEATURES
- Size range: 1/4” thru 1”
- Port options: NPT, SAE, BSP, DIN
- Interchanges with Faster CPV–CPN, Parker 4200
- Working pressure: 25-35 MPa/3571-5076 psi range
- Poppet valve shut-off system
- Push pull mounting feature
APPLICATIONS
- Anywhere quick-release push pull connection is required
- Suitable for flexible hose connection
- Agricultural, mobile construction and industrial plants

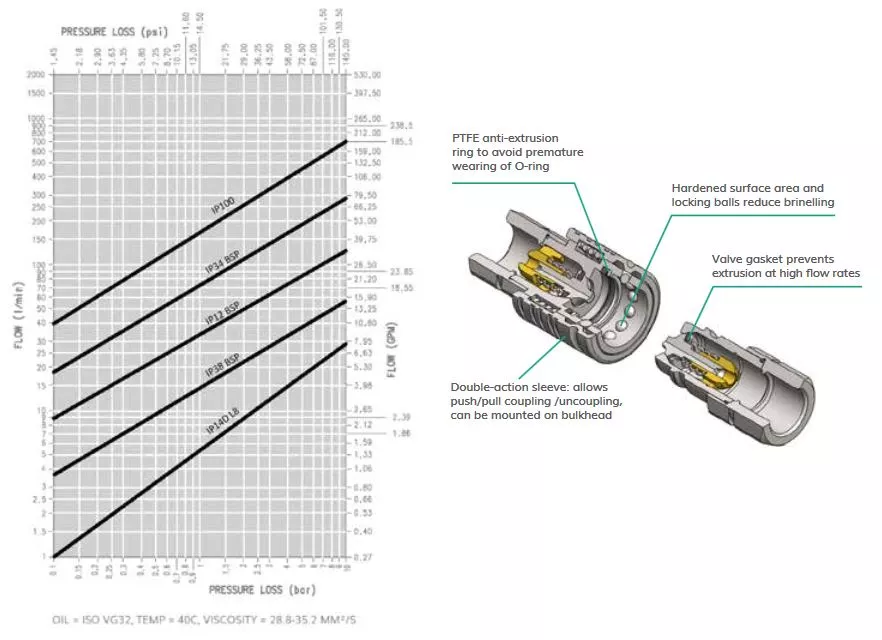

Pressure Drop
| MAX. OPERATING PRESSURE COUPLED | SPILLAGE* | ||||
|---|---|---|---|---|---|
| DESCRIPTION | SIZE | ISO SIZE | MPa | psi | ml |
| I-IP14 | 1/4 | – | 35 | 5076 | 0.70 |
| I-IP38 | 3/8 | 10.0 | 31.5 | 4568 | 1.20 |
| I-IP12 | 1/2 | 12.5 | 25 | 3571 | 2.10 |
| I-IP34 | 3/4 | 20.0 | 25 | 3571 | 5.20 |
| I-IP100 | 1 | 25.0 | 25 | 3571 | 9 |

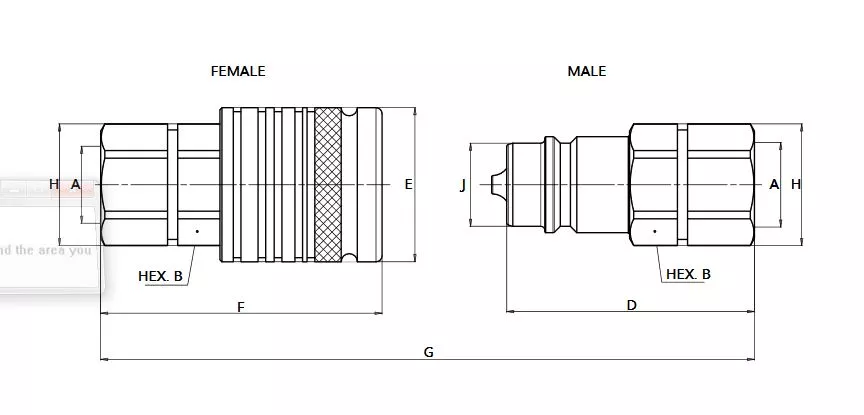

Size Diagram
| DESCRIPTION | BODY SIZE | A | DIMENSION | B | D | E | F | H | I | |
|---|---|---|---|---|---|---|---|---|---|---|
| IP38/I38 | 3/8 | 3/8 | mm | 22 | 48.3 | 32 | 66.5 | 24 | 24 | |
| inch | 0.87 | 1.9 | 1.26 | 2.62 | 0.94 | 0.94 | ||||
| IP12/I12 | 1/2 | 1/2 | mm | 27 | 61.1 | 38 | 69.4 | 30 | 30 | |
| inch | 1.06 | 2.41 | 1.5 | 2.73 | 1.18 | 1.18 | ||||
| IP34/I34 | 3/4 | 3/4 | mm | 36 | 61 | 46 | 88 | 40 | 40 | |
| inch | 1.42 | 2.4 | 1.81 | 3.46 | 1.57 | 1.57 | ||||
| IP100/I100 | 1 | 1 | mm | 41 | 73 | 54 | 107 | 45 | 45 | |
| inch | 1.61 | 2.87 | 2.13 | 4.21 | 1.77 | 1.77 | ||||
I-IP Series BSP and NPT Thread Poppet Style Interchange Coupling
| PART | BODY SIZE | PORT SIZE | THREAD TYPE | ORDER CODE | DESCRIPTION |
|---|---|---|---|---|---|
| I-IP BSP & NPT THREAD | |||||
| COUPLER | 3/8 | 1/4 | BSP | 809400008 | INN. F. IP 38 1/4 BSP |
| NIPPLE | 3/8 | 1/4 | BSP | 809400009 | M. I 38 1/4 BSP |
| COUPLER | 3/8 | 3/8 | BSP | 809400010 | INN. F. IP 38 3/8 BSP |
| NIPPLE | 3/8 | 3/8 | BSP | 809400011 | M. I 38 3/8 BSP |
| COUPLER | 3/8 | 3/8 | MALE BSP | 809400012 | F. IP 38 3/8 BSP EST DIN3852 |
| NIPPLE | 3/8 | 3/8 | MALE BSP | 809400013 | M. I 38 3/8 BSP EST DIN3852 |
| COUPLER | 1/2 | 1/2 | BSP | 809400000 | F. IP 12 1/2 BSP |
| NIPPLE | 1/2 | 1/2 | BSP | 809400001 | M. I 12GS 1/2 BSP |
| COUPLER | 1/2 | 1/2 | MALE BSP | 809400002 | F. IP 12 1/2 BSP EST |
| NIPPLE | 1/2 | 1/2 | MALE BSP | 809400003 | M. I 12GS 1/2 BSP EST |
| COUPLER | 1/2 | 3/8 | BSP | 809400004 | F. IP 12 3/8 BSP |
| NIPPLE | 1/2 | 3/8 | BSP | 809400005 | M. I 12GS 3/8 BSP |
| NIPPLE | 1/2 | 3/8 | MALE BSP | 809400007 | M. I 12GS 3/8 BSP EST |
| COUPLER | 1/2 | 1/2 | NPT | 809401000 | F. IP 12 1/2 NPT |
| NIPPLE | 1/2 | 1/2 | NPT | 809401001 | M. I 12GS 1/2 NPT |
| COUPLER | 3/4 | 3/4 | BSP | 809400014 | F. I 34 3/4 BSP |
| NIPPLE | 3/4 | 3/4 | BSP | 809400015 | M. I 34 3/4 BSP |
| NIPPLE | 3/4 | 3/4 | NPT | 809401003 | M. I 34 3/4 NPT |
| COUPLER | 1 | 3/4 | BSP | 809400016 | F. IP 100 3/4 BSP |
| NIPPLE | 1 | 3/4 | BSP | 809400017 | M. I 100 3/4 BSP |
| COUPLER | 1 | 1 | BSP | 809400018 | F. IP 100 1 BSP |
| NIPPLE | 1 | 1 | BSP | 809400019 | M. I 100 1 BSP |
