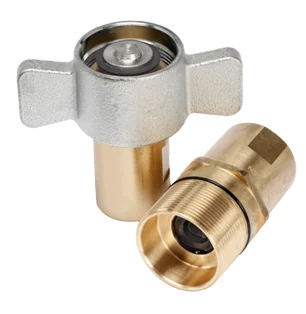

WING STYLE SERIES

The Wing Style Series Rugged Wing Nut provides reliable service wherever a coupling is required to connect under pressure with minimum spillage and air inclusion.

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Coiled tubing

  • Die Casting

  • Mobile

  • Oil & Gas

  • Snow & Ice

Description

Wing Style Interchange

FEATURES
  • Size range: 3/4” thru 1 1/2”
  • Port options: NPT
  • Interchanges with Parker 6100, Aeroquip 5100
  • Threaded sleeve allows connection/disconnection under pressure
  • Seals: Nitrile
  • Coupler and nipple: brass material
  • Wing: cast steel
APPLICATIONS
  • Any instance requiring a connect-under-pressure coupling with minimum spillage and air inclusion
  • Oil and gas, mobile construction, industrial

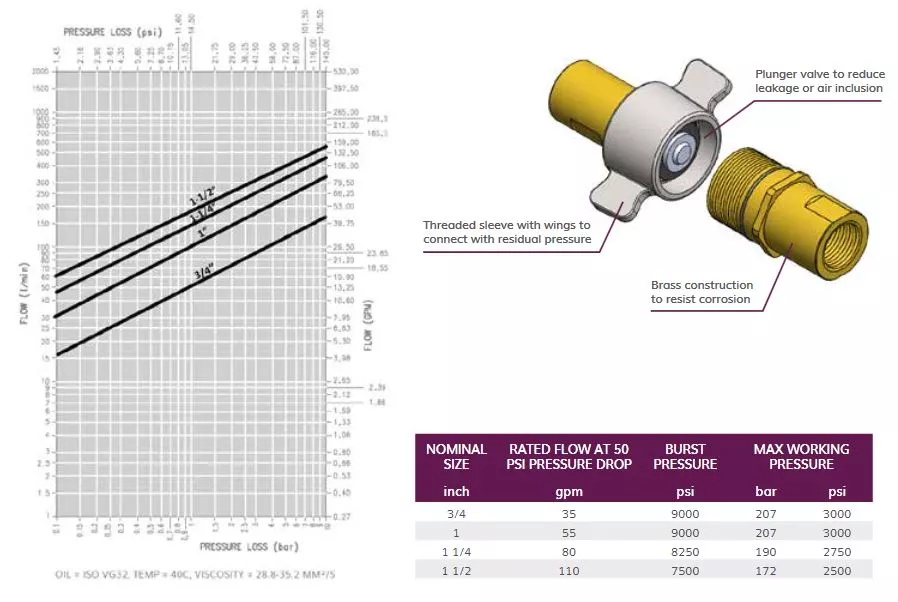

Pressure Drop

wing pressure drop

NOMINAL SIZE RATED FLOW AT 50 PSI PRESSURE DROP BURST PRESSURE MAX WORKING PRESSURE
inch gpm psi bar psi
3/4 35 9000 207 3000
1 55 9000 207 3000
1 1/4 80 8250 190 2750
1 1/2 110 7500 172 2500

W NPT Thread Wing Style Thread to Connect

PART BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
NIPPLE 3/4 5/8 JIC EXT. 100610010 N51WS-12-08 JIC
COUPLER 3/4 1/2 NPT 100610008 C51WS-12-08 NPT
NIPPLE 3/4 1/2 NPT 100610108 N51WS-12-08 NPT
COUPLER 3/4 3/4 NPT 100610012 C51WS-12-12 NPT
NIPPLE 3/4 3/4 NPT 100610112 N51WS-12-12 NPT
COUPLER 1 1 NPT 100610016 C51WS-16-16 NPT
NIPPLE 1 1 NPT 100610116 N51WS-16-16 NPT
COUPLER 1 1/4 1 1/4 NPT 100610020 C51WS-20-20 NPT
NIPPLE 1 1/4 1 1/4 NPT 100610120 N51WS-20-20 NPT
COUPLER 1 1/2 1 1/2 NPT 100610024 C51WS-24-24 NPT
NIPPLE 1 1/2 1 1/2 NPT 100610124 N51WS-24-24 NPT

Wing Style Series Accessories Protective Caps

DESCRIPTION ORDER CODE CAP FOR COUPLER
F. CAP 6WDP-B 200610012 100610012
M. CAP W6DC-B 200610112 100610112
F. CAP 8WDP-B 200610016 100610016
M. CAP W8DC-B 200610116 100610116
F. CAP 10WDP-B 200610020 100610020
M. CAP W10DC-B 200610120 100610120
F. CAP 12WDP-B 200610024 100610024
M. CAP W12DC-B 200610124 100610124

Additional information

Body Size

, , , ,

Material

Port Options

Port Size

, , , ,

Valve Style

Working Pressure
