VR SERIES

Contact Us for Pricing Information

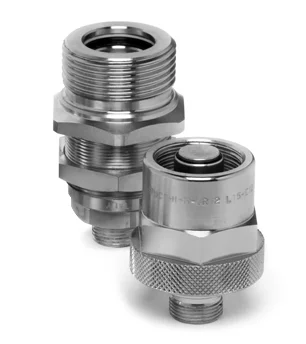

The VR Series German Screw Coupler uses a low leakage-style valve for the sealing mechanism and threads as the mechanical connection, to ensure connection with some residual pressure. The rugged design makes the VR particularly well suited for heavy-duty service conditions and a variety of hydraulic applications, including the mobile construction and industrial fields.

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Coiled tubing

  • Die Casting

  • Mobile

  • Snow & Ice

Description

German Screw Coupler

FEATURES
  • Size range: 3/8” thru 1 1/4”
  • Port options: BSP, DIN
  • Interchangeable with German market couplings
  • Internal components purposely designed to reduce turbulence
  • Friction ring prevents accidental disconnection
  • Various seals and wide range of ports on request
  • Available in 3/8, 1/2, 1, 1 1/4 inch sizes
APPLICATIONS
  • Particularly well suited for heavy-duty service conditions
  • Cover various fields of hydraulic applications
  • Used in mobile cranes, trucks and industrial plant applications

Additional information

Weight N/A
Dimensions N/A
Port Options

,

Valve Style

Material

Working Pressure

Body Size

, , , ,

Port Size

, , , ,

Port Option

DIN

Max Operating Pressure Coupled (PSI)

5075, 6090

Burst Pressure (PSI)

17400, 18275, 19580, 21030

Spillage (ml)

0.012, 0.02, 0.4, 1

Available Options:
