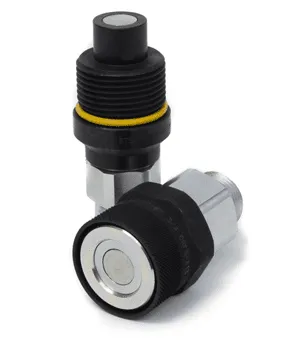

Description
Connect/Disconnect Under High Residual Pressure
FEATURES
- Size range: 1/4” thru 2”
- Port options: NPT, SAE, BSP, ORFS
- Interchanges with VEPHD, VEPHDL Series
- Connect/disconnect up to 25 MPa/3625 psi residual pressure
- Working pressure: 35-60 MPa/5075-8700 psi range
- Eliminates brinelling, reduces leakage
- Saves time changing tools
APPLICATIONS
- All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure
- All large equipment needing junction points in circuit: cranes, drilling machines, oil field, well head drives, porta-power
- Excavators w/ auxiliary line for attachments: thumbs, grapples, hammers, compactors/hopaks
Pressure Drop
Performance
| Burst Pressure | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Max Operating Pressure Coupled | COUPLED | MALE | FEMALE | Max Residual Pressure after Coupling | Spillage * | |||||||
| Description | Size | MPa | psi | MPa | psi | MPa | psi | MPa | psi | MPa | psi | ml |
| VEP7P | 1/4 | 60 | 8700 | 150 | 21750 | 150 | 21750 | 126 | 18270 | 30 | 4350 | 0.012 |
| VEP9P | 3/8 | 55 | 7975 | 140 | 20300 | 140 | 20300 | 100 | 14500 | 25 | 3625 | 0.040 |
| VEP13P | 1/2 | 55 | 7975 | 140 | 20300 | 140 | 20300 | 100 | 14500 | 25 | 3625 | 0.025 |
| VEP15P | 3/4 | 55 | 7975 | 140 | 20300 | 140 | 20300 | 100 | 14500 | 25 | 3625 | 0.033 |
| VEP17P | 1 | 50 | 7250 | 125 | 18125 | 125 | 18125 | 100 | 14500 | 25 | 3625 | 0.018 |
| VEP21P | 1 1/4 | 47 | 6815 | 120 | 17400 | 120 | 17400 | 80 | 11600 | 25 | 3625 | 0.060 |
| VEP30P | 1 1/2 | 40 | 5800 | 110 | 15950 | 110 | 15950 | 80 | 11600 | 25 | 3625 | 0.200 |
| VEP45P | 2 | 35 | 5075 | 110 | 15950 | 110 | 15950 | 80 | 11600 | 25 | 3625 | 0.350 |
3625

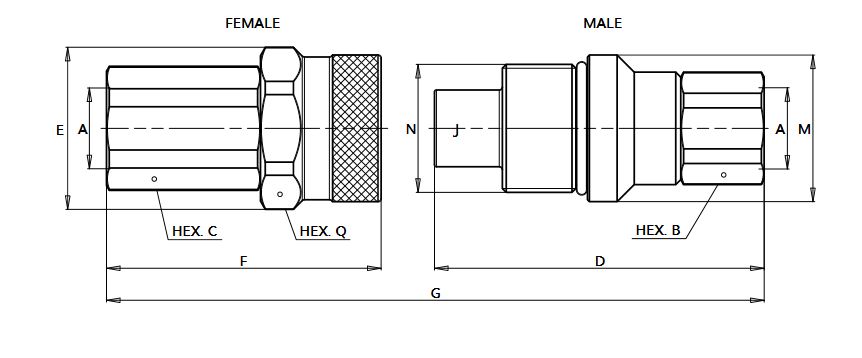

Size Diagram
| WEIGHT | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DESC. | BODY SIZE | A | UNIT | B | C | D | E | F | G | M | N | G | UNIT | MALE | FEMALE |
| VEP7P | 1/4 | 1/4 | mm | 22.0 | 27.0 | 71.0 | 38.8 | 54.1 | 113.3 | 34.8 | 36.0 | kg | 0.235 | 0.25 | |
| inch | 0.87 | 1.06 | 2.80 | 1.53 | 2.13 | 4.46 | 1.37 | M30X2 | 1.42 | lb | 0.52 | 0.55 | |||
| VEP9P | 3/8 | 3/8 | mm | 27.0 | 30.0 | 82.5 | 41.8 | 65.8 | 131.3 | 37.8 | 38.0 | kg | 0.325 | 0.335 | |
| inch | 1.06 | 1.18 | 3.25 | 1.65 | 2.59 | 5.17 | 1.49 | M33X2 | 1.50 | lb | 0.72 | 0.74 | |||
| VEP9P | 3/8 | 1/2 | mm | 27.0 | 30.0 | 85.0 | 41.8 | 70.8 | 138.8 | 37.8 | 38.0 | kg | 0.320 | 0.345 | |
| inch | 1.06 | 1.18 | 3.35 | 1.65 | 2.79 | 5.46 | 1.49 | M33X2 | 1.50 | lb | 0.71 | 0.76 | |||
| VEP13P | 1/2 | 1/2 | mm | 36.0 | 36.0 | 95.0 | 49.8 | 77.8 | 154.6 | 45.8 | 46.0 | kg | 0.605 | 0.635 | |
| inch | 1.42 | 1.42 | 3.74 | 1.96 | 3.06 | 6.09 | 1.80 | M40X3 | 1.81 | lb | 1.33 | 1.40 | |||
| VEP13P | 1/2 | 3/4 | mm | 36.0 | 36.0 | 97.4 | 49.8 | 84.8 | 164.0 | 45.8 | 46.0 | kg | 0.59 | 0.60 | |
| inch | 1.42 | 1.42 | 3.83 | 1.96 | 3.34 | 6.46 | 1.80 | M40X3 | 1.81 | lb | 1.30 | 1.32 | |||
| VEP15P | 3/4 | 3/4 | mm | 36.0 | 41.0 | 99.0 | 53.8 | 84.9 | 165.4 | 49.8 | 50.0 | kg | 0.69 | 0.765 | |
| inch | 1.42 | 1.61 | 3.90 | 2.12 | 3.34 | 6.51 | 1.96 | M45X3 | 1.97 | lb | 1.52 | 1.69 | |||
| VEP17P | 1 | 3/4 | mm | 46.0 | 46.0 | 113.6 | 58.8 | 96.7 | 187.5 | 54.8 | 55.0 | kg | 1.065 | 1.168 | |
| inch | 1.81 | 1.81 | 4.47 | 2.31 | 3.81 | 7.38 | 2.16 | M50X3 | 2.17 | lb | 2.35 | 2.57 | |||
| VEP17P | 1 | 1 | mm | 46.0 | 46.0 | 113.6 | 58.8 | 99.7 | 190.5 | 54.8 | 55.0 | kg | 1.025 | 1.115 | |
| inch | 1.81 | 1.81 | 4.47 | 2.31 | 3.93 | 7.50 | 2.16 | M50X3 | 2.17 | lb | 2.26 | 2.46 | |||
| VEP21P | 1 1/4 | 1 | mm | 55.0 | 55.0 | 123.4 | 69.8 | 105.8 | 205.2 | 64.5 | 65.0 | kg | 1.540 | 1.780 | |
| inch | 2.17 | 2.17 | 4.86 | 2.75 | 4.17 | 8.08 | 2.54 | M58X3 | 2.56 | lb | 3.40 | 3.92 | |||
| VEP21P | 1 1/4 | 1 1/4 | mm | 55.0 | 55.0 | 123.4 | 69.8 | 106.8 | 206.2 | 64.5 | 65.0 | kg | 1.465 | 1.700 | |
| inch | 2.17 | 2.17 | 4.86 | 2.75 | 4.20 | 8.12 | 2.54 | M58X3 | 2.56 | lb | 3.23 | 3.75 | |||
| VEP30P | 1 1/2 | 1 1/4 | mm | 65.0 | 65.0 | 150.0 | 92.0 | 133.5 | 253.9 | 89.8 | 85.0 | kg | 3.245 | 3.910 | |
| inch | 2.56 | 2.56 | 5.91 | 3.62 | 5.26 | 10.00 | 3.54 | M80X4 | 3.35 | lb | 7.15 | 8.62 | |||
| VEP30P | 1 1/2 | 1 1/2 | mm | 65.0 | 65.0 | 150.0 | 92.0 | 133.5 | 253.9 | 89.8 | 85.0 | kg | 3.18 | 3.84 | |
| inch | 2.56 | 2.56 | 5.91 | 3.62 | 5.26 | 10.00 | 3.54 | M80X4 | 3.35 | lb | 7.01 | 8.47 | |||
| VEP45P | 2 | 2 | mm | 90.0 | 90.0 | 218.4 | 200.0 | 224.8 | 383.5 | 145.0 | 0.00 | kg | 11.67 | 14.76 | |
| inch | 3.54 | 3.54 | 8.60 | 7.87 | 8.85 | 15.10 | 5.71 | M130X6 | 0.00 | lb | 25.73 | 32.54 |
VEP NPT Thread Flat Face Thread Coupling with High Residual Pressure
| PART | BODY SIZE | PORT SIZE | THREAD TYPE | ORDER CODE | PART DESCRIPTION |
|---|---|---|---|---|---|
| VEP NPT THREAD | |||||
| COUPLER | 1/4 | 1/4 | NPT | 806501008 | F. VEP7 1/4 NPT |
| NIPPLE | 1/4 | 1/4 | NPT | 806501009 | M. VEP7 1/4 NPT |
| COUPLER | 3/8 | 3/8 | NPT | 806501002 | F. VEP9P 3/8 NPT |
| NIPPLE | 3/8 | 3/8 | NPT | 806501003 | M. VEP9P 3/8 NPT |
| COUPLER | 3/8 | 1/2 | NPT | 806501014 | F. VEP9P 1/2 NPT |
| NIPPLE | 3/8 | 1/2 | NPT | 806501015 | M. VEP9P 1/2 NPT |
| COUPLER | 1/2 | 1/2 | NPT | 806501000 | F. VEP13P 1/2 NPT |
| NIPPLE | 1/2 | 1/2 | NPT | 806501001 | M. VEP13P 1/2 NPT |
| COUPLER | 1/2 | 3/4 | NPT | 806501016 | F. VEP13P 3/4 NPT |
| NIPPLE | 1/2 | 3/4 | NPT | 806501017 | M. VEP13P 3/4 NPT |
| COUPLER | 3/4 | 3/4 | NPT | 806501004 | F. VEP15P 3/4 NPT |
| NIPPLE | 3/4 | 3/4 | NPT | 806501005 | M. VEP15P 3/4 NPT |
| COUPLER | 1 | 1 | NPT | 806501006 | F. VEP17P 1 NPT |
| NIPPLE | 1 | 1 | NPT | 806501007 | M. VEP17P 1 NPT |
| COUPLER | 1 1/4 | 1 1/4 | NPT | 806501010 | F. VEP21P 1 1/4 NPT |
| NIPPLE | 1 1/4 | 1 1/4 | NPT | 806501011 | M. VEP21P 1 1/4 NPT |
| COUPLER | 1 1/2 | 1 1/2 | NPT | 806501012 | F. VEP30P 1 1/2 NPT |
| NIPPLE | 1 1/2 | 1 1/2 | NPT | 806501013 | M. VEP30P 1 1/2 NPT |
| COUPLER | 2 | 2 | NPT | 807201018 | F. VEP45P 2 NPT |
| NIPPLE | 2 | 2 | NPT | 807201019 | M. VEP45P 2 NPT |
| VEP BSP THREAD | |||||
| COUPLER | 3/8 | 3/8 | BSP | 807200002 | F. VEP9P 3/8 BSP |
| NIPPLE | 3/8 | 3/8 | BSP | 807200003 | M. VEP9P 3/8 BSP |
| COUPLER | 1/2 | 1/2 | BSP | 807200006 | F. VEP13P 1/2 BSP |
| NIPPLE | 1/2 | 1/2 | BSP | 807200007 | M. VEP13P 1/2 BSP |
| COUPLER | 3/4 | 3/4 | BSP | 807200010 | F. VEP15P 3/4 BSP |
| NIPPLE | 3/4 | 3/4 | BSP | 807200011 | M. VEP15P 3/4 BSP |
| COUPLER | 1 | 1 | BSP | 807200012 | F. VEP17P 1 BSP |
| NIPPLE | 1 | 1 | BSP | 807200013 | M. VEP17P 1 BSP |
| COUPLER | 1 1/4 | 1 | BSP | 807200020 | F. VEP21P 1 BSP |
| NIPPLE | 1 1/4 | 1 | BSP | 807200021 | M. VEP21P 1 BSP |
| COUPLER | 1 1/4 | 1 1/4 | BSP | 807200014 | F. VEP21P 1 1/4 BSP |
| NIPPLE | 1 1/4 | 1 1/4 | BSP | 807200015 | M. VEP21P 1 1/4 BSP |
| COUPLER | 1 1/2 | 1 1/2 | BSP | 807200016 | F. VEP30P 1 1/2 BSP |
| NIPPLE | 1 1/2 | 1 1/2 | BSP | 807200017 | M. VEP30P 1 1/2 BSP |
| COUPLER | 2 | 2 | BSP | 807200018 | F. VEP45P 2 BSP |
| NIPPLE | 2 | 2 | BSP | 807200019 | M. VEP45P 2 BSP |
VEP SAE and Flange Thread Flat Face Thread Coupling with High Residual Pressure
| PART | BODY SIZE | PORT SIZE | THREAD TYPE | ORDER CODE | PART DESCRIPTION |
|---|---|---|---|---|---|
| VEP SAE THREAD | |||||
| COUPLER | 1/4 | 3/8 | SAE | 806504008 | F. VEP7 3/8 SAE |
| NIPPLE | 1/4 | 3/8 | SAE | 806504009 | M. VEP7 3/8 SAE |
| COUPLER | 3/8 | 3/8 | SAE | 806504014 | F. VEP9P 3/8 SAE |
| NIPPLE | 3/8 | 3/8 | SAE | 806504015 | M. VEP9P 3/8 SAE |
| COUPLER | 3/8 | 1/2 | SAE | 806504000 | F. VEP9P 1/2 SAE |
| NIPPLE | 3/8 | 1/2 | SAE | 806504001 | M. VEP9P 1/2 SAE |
| COUPLER | 1/2 | 1/2 | SAE | 807204006 | F. VEP13P 1/2 SAE* |
| NIPPLE | 1/2 | 1/2 | SAE | 807204007 | M. VEP13P 1/2 SAE* |
| COUPLER | 1/2 | 3/4 | SAE | 806504004 | F. VEP13P 3/4 SAE |
| NIPPLE | 1/2 | 3/4 | SAE | 806504005 | M. VEP13P 3/4 SAE |
| COUPLER | 3/4 | 3/4 | SAE | 806504006 | F. VEP15P 3/4 SAE |
| NIPPLE | 3/4 | 3/4 | SAE | 806504007 | M. VEP15P 3/4 SAE |
| COUPLER | 1 | 1 | SAE | 806504002 | F. VEP17P 1 SAE |
| NIPPLE | 1 | 1 | SAE | 806504003 | M. VEP17P 1 SAE |
| COUPLER | 1 1/4 | 1 1/4 | SAE | 806504010 | F. VEP21P 1 1/4 SAE |
| NIPPLE | 1 1/4 | 1 1/4 | SAE | 806504011 | M. VEP21P 1 1/4 SAE |
| COUPLER | 1 1/2 | 1 1/2 | SAE | 806504012 | F. VEP30P 1 1/2 SAE |
| NIPPLE | 1 1/2 | 1 1/2 | SAE | 806504013 | M. VEP30P 1 1/2 SAE |
| COUPLER | 2 | 2 | SAE | 807204018 | F. VEP45P 2 SAE |
| NIPPLE | 2 | 2 | SAE | 807204019 | M. VEP45P 2 SAE |
| VEP FLANGE THREAD | |||||
| COUPLER | 2 | 2 | FLANGE HEAD | 807224018 | F. VEP45P 2 CODE 62 FH |
| NIPPLE | 2 | 2 | FLANGE HEAD | 807224019 | M. VEP45P 2 CODE 62 FH |
| COUPLER | 2 | 2 | FLANGE PAD | 807224020 | F. VEP45P 2 CODE 62 FP |
| NIPPLE | 2 | 2 | FLANGE PAD | 807224021 | M. VEP45P 2 CODE 62 FP |
| COUPLER | 2 | 2 | NPT | 807201026 | F. VEP45P GG 2 NPT* |
‘
