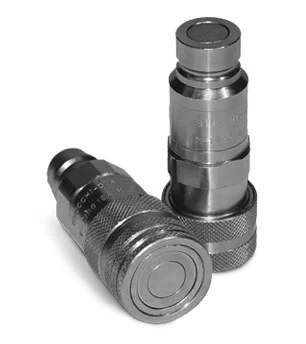

The FIRG/ISO A series adapter provides dimensional compatibility between old and new equipment, by adapting imperial nominal size to ISO metric size in a flat face coupler. This avoids changing mismatched couplers, saving time and resources. These bi-directional flow adapters are ideal in systems with high pressure that require reliable leak-free coupling.
| Body Size | |
|---|---|
| Material | |
| Port Size | |
| Valve Style | |
| Working Pressure |
The multi-coupling plate allows the simultaneous couple and uncouple of two to ten hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same nominal coupler diameter and different media or different size couplers. A dust cap is supplied, and options include: an electrical connector for low voltage requirements and a parking station.
The VEP series is a popular solution for hydraulic circuit applications subject to high pressure impulses and circuits which experience high residual or trapped pressure in a line. Thread-to-connect design eliminates premature wear or brinelling, a patented internal valve allows connection/disconnection with high residual pressures, and the flat face design avoids loss of hydraulic fluid and contamination into the circuit. A yellow o-ring indicator makes the VEP series even easier to work with.
The multi-coupling plate allows the simultaneous couple and uncouple of two to four hydraulic and/or electrical lines with a single, simple movement requiring very little force. The circuit lines can all have the same coupler nominal diameter and different media. A dust cap is supplied, and options include: an electrical connector for low voltage requirements and a parking station.
The multi-coupling plate allows the simultaneous couple and uncouple of two large diameter hydraulic lines with a single, simple movement requiring very little force. The system eliminates crossing of lines, reducing downtime and insuring couplers are fully connected. The auto-locking system insures that lines are connected safely and provides secondary retention of the connection.
