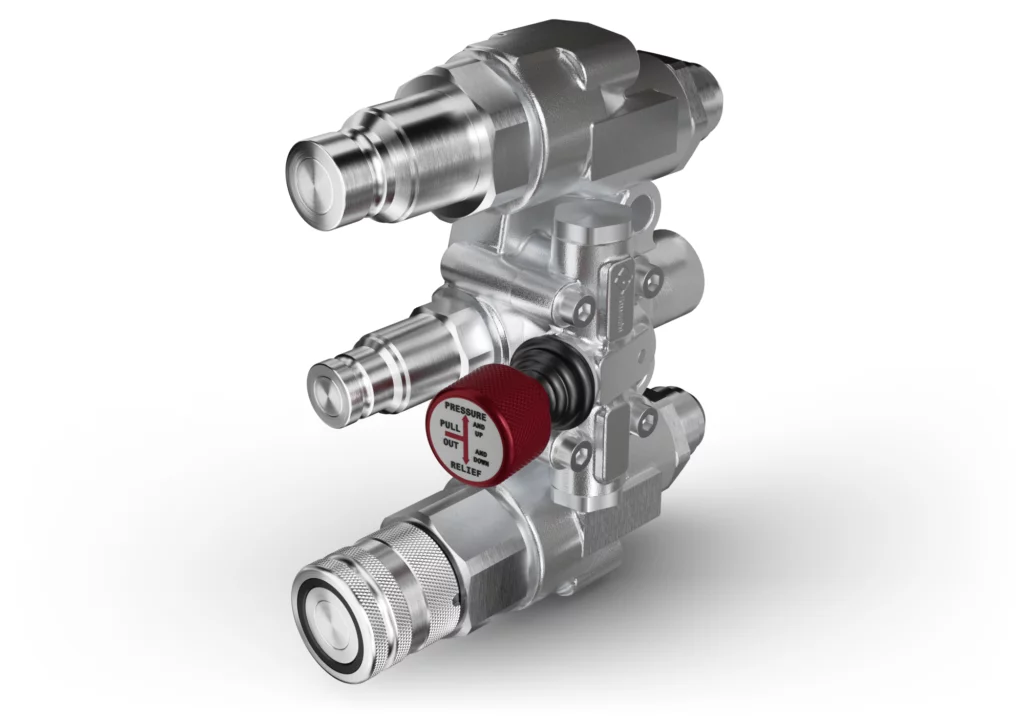

SATURN BLOCK SERIES

Contact Us for Pricing Information

The Saturn Block allows for easy connection/disconnection with residual pressure, with a user-friendly relief system that drains the residual pressure before connection and disconnection, for connection without pressure or effort to reduce injury risk. The Saturn Block is a direct field replacement for other connect under pressure systems.

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Agricultural

  • Demolition

Description

FEATURES
  • Size range: 1/2” thru 3/4”
  • Interchangeable with ISO 16028 parts: couplings size 1/2, 5/8, and 3/4 inch, and drain line size 3/8 or 1/2 inch male
  • Flat face push-to-connect couplings
  • Connection/disconnection with residual pressure, after draining the pressure with the knob
  • Threads available: 3/4 JIC for pressure lines, 3/8 SAE for drain line, others on request
  • Cr(III) zinc plated surface, seals: NBR or POM; anti-extrusion rings: PTFE
APPLICATIONS
  • Mobile construction equipment
  • Skid steers
  • Excavators and mini-excavators

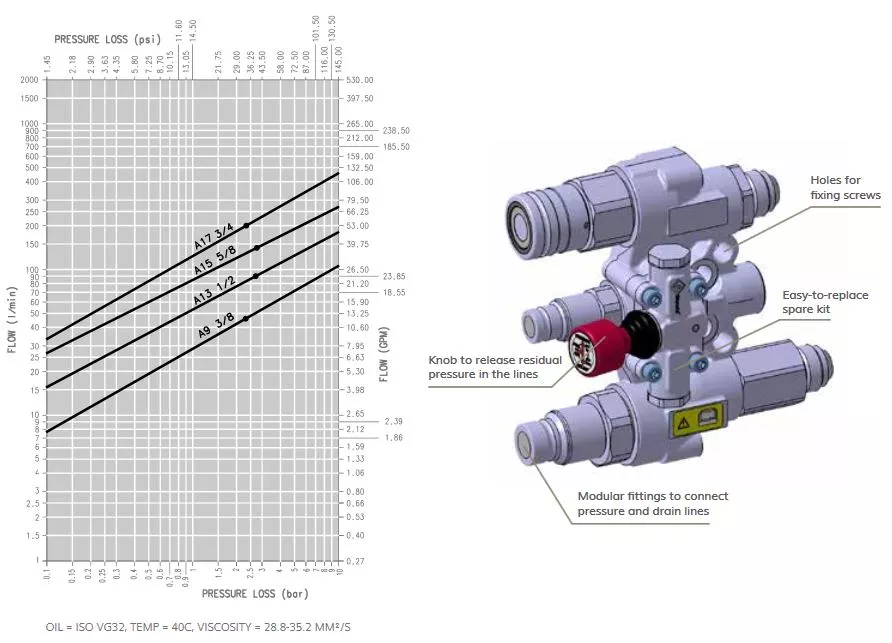

Pressure Drop

saturn pressure drop

Performance

MAX. OPERATING
PRESSURE
MAX. RESIDUAL PRESSURE
DURING CONNECTION
SPILLAGE*
DESCRIPTION SIZE MPa psi MPa psi ml
SATURN BLOCK 13 1/2 35 5075 25 3625 0.020
SATURN BLOCK 15 5/8 35 5075 25 3625 0.026
SATURN BLOCK 17 3/4 35 5075 25 3625 0.032

* Spillage is an indicative value of the fluid loss per couple-uncouple cycle.

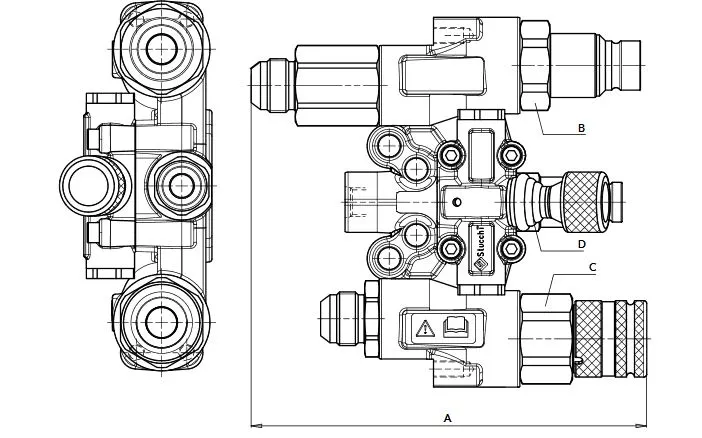

Size Diagram

saturn size diagram

DESCRIPTION ORDER CODE BODYSIZE UNIT A B C D UP DRAIN DOWN UNIT WEIGHT
SATURN BLOCK 13 808800102 1/2 mm 196.8 41 41 27 DN 12.5 DN 10 DN 12.5 kg 4.312
inch 7.75 1.61 1.61 1.06 1/2 3/8 1/2 lb 9.506
SATURN BLOCK 15 808800103 5/8 mm 203.7 41 41 27 DN 16 DN 10 DN 16 kg 4.437
inch 8.02 1.61 1.61 1.06 5/8 3/8 5/8 lb 9.782
SATURN BLOCK 17 808800104 3/4 mm 224 46 46 32 DN 19 DN 12.5 DN 19 kg 5.052
inch 8.82 1.81 1.81 1.26 3/4 1/2 3/4 lb 11.138

Order Codes

DESCRIPTION ORDER CODE BODY SIZE – COUPLER & NIPPLE DRAIN LINE SIZE
SATURN BLOCK 13 808800102 1/2 3/8
SATURN BLOCK 15 808800103 5/8 3/8
SATURN BLOCK 17 808800104 3/4 1/2
SATURN BLOCK 17 808800105 3/4 3/8

* Use “R” suffix to reverse positions of coupler and nipple in the Saturn Block.

PART ORDER CODE DESCRIPTION
COUPLER 808313030 F. A13HD COUPLER
NIPPLE 808313001 M. A13HD NIPPLE
COUPLER 808313032 F. A15HD COUPLER
NIPPLE 808313003 M. A15HD NIPPLE
COUPLER 801313010 F. A17 COUPLER
NIPPLE 801313011 M. A17 NIPPLE
COUPLER 801304033 M. A9 NIPPLE DRAIN LINE
NIPPLE 801304049 M. A13 NIPPLE DRAIN LINE
VALVE KIT 815700852 SATURN VALVE RELIEF KIT *

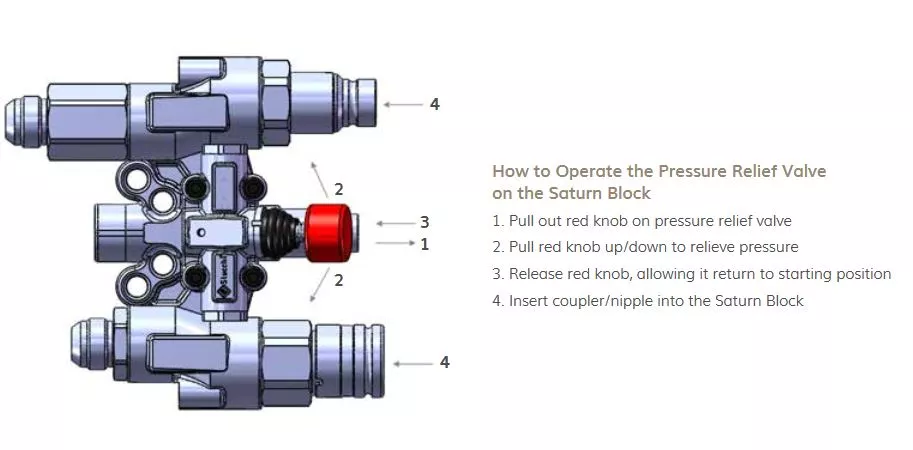

saturn operation diagram

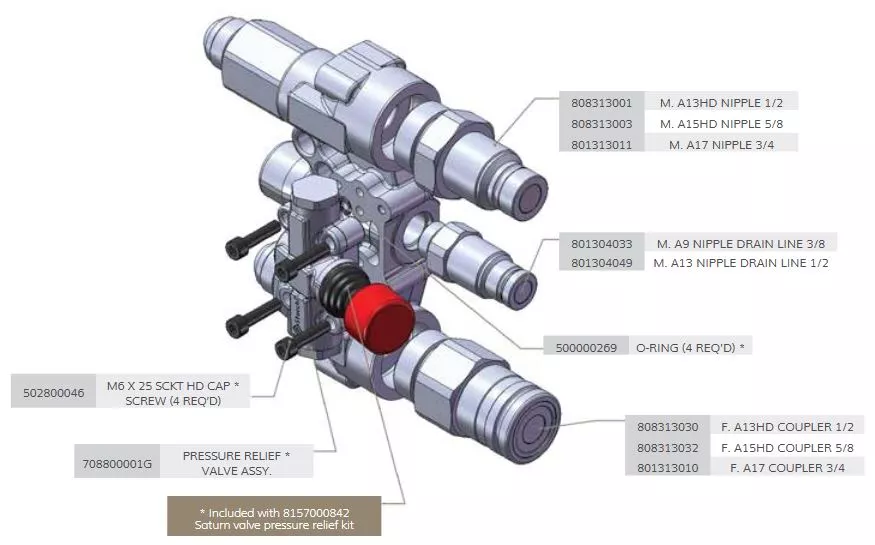

Replacement Parts List

saturn replacement parts diagram
