VUZ Series

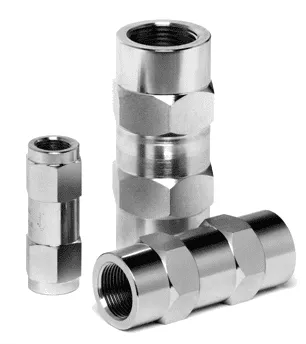

The VUZ series check valves are used in any type of hydraulic circuit, with a safe, compact design suitable to any hydraulic application using non-corrosive liquids. The VU size range includes two different standard openings at 5 to 65 psi. The VU series can also be used as a pressure sequence valve by adjusting the internal spring loading to the required cracking point, according to the valve size.

Category: Tags: , , ,

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Agricultural

  • Industrial

  • Mobile

  • Oil & Gas

Description

FEATURES
  • Size range: 1/8” thru 2”
  • Port options: NPT, SAE
  • Standard SAE threads
  • Standard crack 5 psi and 65 psi; various crack pressures optional
  • Material: high strength carbon steel with zinc plating
APPLICATIONS
  • Any type of hydraulic circuit
  • Any hydraulic application using non-corrosive liquids

Mobile
Mobile

Pressure Drop

vu pressure drop

SIZE MAX SUGGESTED FLOW MAX OPERATING PRESSURE BURST PRESSURE
DESCRIPTION inch I/mm GPM MPa psi MPa psi
VU 18 1/8 6 1.59 40 5800 160 23200
VU 14 1/4 24 6.36 35 5075 140 20300
VU 38 3/8 46 12.19 35 5075 140 20300
VU 12 1/2 90 23.85 30 4350 120 17400
VU 34 3/4 148 39.22 30 4350 120 17400
VU 100 1 200 53 30 4350 120 17400
VU 114 1 1/4 378 100.17 25 3625 100 14500
VU 112 1 1/2 600 159 25 3625 100 14500
VU 200 2 1000 265 15 2175 45 6525

Temperature range: from -20 C (-4 F) to 120 oC (248 F)

Size Diagram

vu size diagram

B C D WEIGHT
DESCRIPTION A mm inch mm inch mm inch kg lb
VU 18 1/8 14.0 0.55 44.0 1.73 16.2 0.64 0.038 0.08
VU 14 1/4 19.0 0.75 60.0 2.36 21.9 0.86 0.090 0.20
VU 38 3/8 24.0 0.94 70.0 2.76 27.7 1.09 0.185 0.41
VU 12 1/2 30.0 1.18 77.0 3.03 34.6 1.36 0.303 0.67
VU 34 3/4 36.0 1.42 90.0 3.54 41.6 1.64 0.499 1.10
VU 100 1 45.0 1.77 106.0 4.17 52.0 2.05 0.901 1.99
VU 114 1 1/4 55.0 2.17 125.0 4.92 63.5 2.50 1.513 3.34
VU 112 1 1/2 65.0 2.56 140.0 5.51 75.1 2.96 2.430 5.36
VU 200 2 75.0 2.95 160.0 6.30 86.6 3.41 3.130 6.90
B C D WEIGHT
DESCRIPTION A mm inch mm inch mm inch kg lb
VU 14 SAE 7/16-20UNF 19.0 0.75 60.0 2.36 21.9 0.86 0.100 0.22
VU 38 SAE 9/16-18UNF 24.0 0.94 70.0 2.76 27.7 1.09 0.192 0.42
VU 12 SAE 3/4-16UNF 30.0 1.18 77.0 3.03 34.6 1.36 0.315 0.69
VU 34 SAE 1-1/16-12UN 36.0 1.42 94.0 3.70 41.6 1.64 0.490 1.08
VU 100 SAE 1-5/16-12UN 45.0 1.77 106.0 4.17 52.0 2.05 0.870 1.92
VU 114 SAE 1-5/8-12UN 55.0 2.17 125.0 4.92 63.5 2.50 1.486 3.28
VU 112 SAE 1-7/8-12UN 65.0 2.56 140.0 5.51 75.1 2.96 2.410 5.31
VU 200 SAE 2-1/2-12UN 75.0 2.95 160.0 6.30 86.6 3.41 2.995 6.60

VUS NPT Thread Soft Seal Check Valves

CRACK POINT BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
VUS NPT THREAD
5 psi 3/4 3/4 NPT 810701100 VUS 34 NPT 5 PSI SOFT SEAT
50 psi 3/4 1 NPT 810701400 VUS 100 NPT 50 PSI SOFT SEAT

VU NPT and SAE Thread

CRACKPOINT BODYSIZE PORTSIZE THREADTYPE ORDER CODEBLACK OXIDE ORDER CODECHROME III DESCRIPTION
VU NPT THREAD
5 psi 1/8 1/8 NPT 810201100 810501100 VU 18 NPT 5 PSI
5 psi 1/4 1/4 NPT 810201101 810501101 VU 14 NPT 5 PSI
5 psi 3/8 3/8 NPT 810201102 810501102 VU 38 NPT 5 PSI
5 psi 1/2 1/2 NPT 810201103 810501103 VU 12 NPT 5 PSI
5 psi 3/4 3/4 NPT 810201104 810501104 VU 34 NPT 5 PSI
5 psi 1 1 NPT 810201105 810501105 VU 100 NPT 5 PSI
5 psi 1 1⁄4 1 1⁄4 NPT 810201106 810501106 VU 114 NPT 5 PSI
5 psi 1 1⁄2 1 1⁄2 NPT 810201107 810501107 VU 112 NPT 5 PSI
5 psi 2 2 NPT 810201108 810501108 VU 200 NPT 5 PSI
5 psi 3/4 3/4 NPT 810201109 810501109* VU 34F 1.5 NPT 5 PSI
5 psi 1 1 NPT 810201110 810501110* VU 100F 1.5 NPT 5 PSI
5 psi 1/2 1/2 NPT 810201112 810501112* VU 12EI NPT 5 PSI**
65 psi 1/8 1/8 NPT 810201400 810501400 VU 18 NPT 65 PSI
65 psi 1/4 1/4 NPT 810201401 810501401 VU 14 NPT 65 PSI
65 psi 3/8 3/8 NPT 810201402 810501402 VU 38 NPT 65 PSI
65 psi 1/2 1/2 NPT 810201403 810501403 VU 12 NPT 65 PSI
65 psi 3/4 3/4 NPT 810201404 810501404 VU 34 NPT 65 PSI
65 psi 1 1 NPT 810201405 810501405 VU 100 NPT 65 PSI
65 psi 1 1⁄4 1 1⁄4 NPT 810201406 810501406 VU 114 NPT 65 PSI
65 psi 1 1⁄2 1 1⁄2 NPT 810201407 810501407 VU 112 NPT 65 PSI
65 psi 2 2 NPT 810201408 810501408 VU 200 NPT 65 PSI
VU SAE THREAD
5 psi 1/4 1/4 SAE 810204100 810504100 VU 14 SAE 5 PSI
5 psi 3/8 3/8 SAE 810204101 810504101 VU 38 SAE 5 PSI
5 psi 1/2 1/2 SAE 810204102 810504102 VU 12 SAE 5 PSI
5 psi 3/4 3/4 SAE 810204103 810504103 VU 34 SAE 5 PSI
5 psi 1 1 SAE 810204104 810504104 VU 100 SAE 5 PSI
5 psi 1 1⁄4 1 1⁄4 SAE 810204105 810504105 VU 114 SAE 5 PSI
5 psi 1 1⁄2 1 1⁄2 SAE 810204106 810504106 VU 112 SAE 5 PSI
5 psi 2 2 SAE 810204107 810504107 VU 200 SAE 5 PSI
65 psi 1/4 1/4 SAE 810204400 810504404 VU 14 SAE 65 PSI
65 psi 3/8 3/8 SAE 810204401 810504401 VU 38 SAE 65 PSI
65 psi 1/2 1/2 SAE 810204402 810504402 VU 12 SAE 65 PSI
65 psi 3/4 3/4 SAE 810204403 810504403 VU 34 SAE 65 PSI
65 psi 1 1 SAE 810204404 810504400 VU 100 SAE 65 PSI
65 psi 1 1⁄4 1 1⁄4 SAE 810204405 810504405 VU 114 SAE 65 PSI
65 psi 1 1⁄2 1 1⁄2 SAE 810204406 810504406 VU 112 SAE 65 PSI
65 psi 2 2 SAE 810204407 810504407 VU 200 SAE 65 PSI
*Available upon special request **Female X Male NPT

VU NPT Thread

CRACK POINT BODY SIZE PORT SIZE THREAD TYPE ORDER CODE DESCRIPTION
VU NPT THREAD
14 psi 1/4 1/4 NPT 810201200 VU 14 NPT 14 PSI
14 psi 1/2 1/2 NPT 810201201 VU 12 NPT 14 PSI
14 psi 3/4 3/4 NPT 810201202 VU 34 NPT 14 PSI
14 psi 1 1 NPT 810201203 VU 100 NPT 14 PSI
14 psi 1 1/4 1 1/4 NPT 810201204 VU 114 NPT 14 PSI
14 psi 1 1/2 1 1/2 NPT 810201205 VU 112 NPT 14 PSI
21 psi 1 1 NPT 810201300 VU 100 NPT 21 PSI
57 psi 1/2 1/2 NPT 810201409 VU 12 NPT 57 PSI
115 psi 1/2 1/2 NPT 810201600 VU 12 NPT 115 PSI
115 psi 3/4 3/4 NPT 810201601 VU 34 NPT 115 PSI
145 psi 1 1 NPT 810201602 VU 100 NPT 145 PSI
215 psi 1/4 1/4 NPT 810201700 VU 14 NPT 215 PSI
290 psi 1/2 1/2 NPT 810201701 VU 12 NPT 290 PSI
