Description
Flat Face Coupling
FEATURES
- Size range: 1/8” thru 3/8”
- Port options: NPT, BSP
- Working pressure: 700-720 bar/10,000 psi
- Locking sleeve eliminates accidental disconnection
- Flat face design limits leakage and contamination of hydraulic circuit
APPLICATIONS
- High pressure, leak-free requirements
- Mobile construction
- Emergency cutting tools, hydraulic wrenches, tools
- Industrial machinery

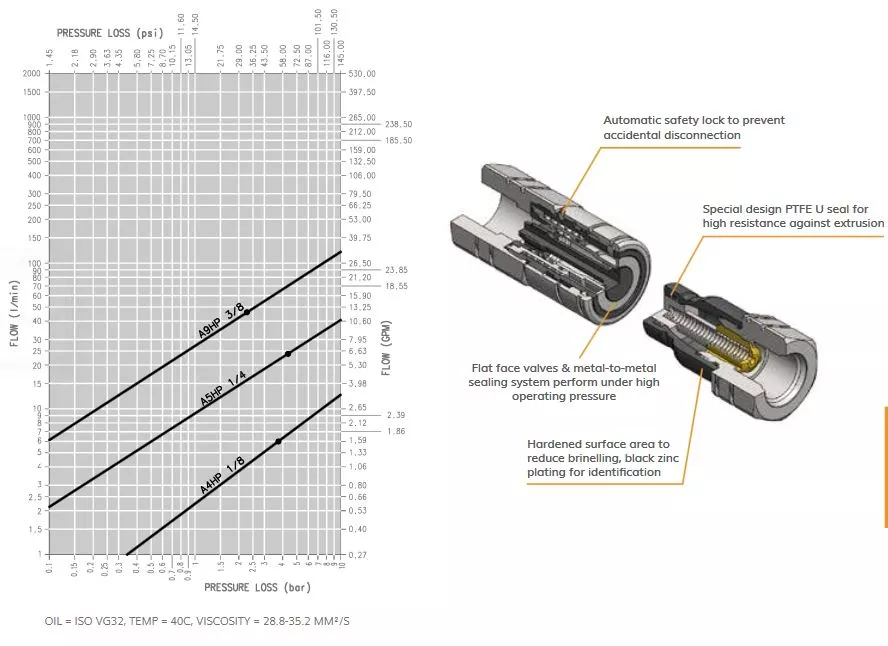

Pressure Drop
Performance
| BURST PRESSURE | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MAX. OPERATING PRESSURE COUPLED |
COUPLED | MALE | FEMALE | SPILLAGE* | |||||||
| DESCRIPTION | SIZE | MPa | psi | MPa | psi | MPa | psi | MPa | psi | ml | |
| A4HP | 1/8 | 72 | 10440 | 160 | 23200 | 160 | 23200 | 160 | 23200 | 0.040 | |
| A5HP | 1/4 | 72 | 10440 | 200 | 29000 | 200 | 29000 | 150 | 21750 | 0.020 | |
| A9HP | 3/8 | 72 | 10440 | 180 | 26100 | 200 | 29000 | 125 | 18125 | 0.020 | |

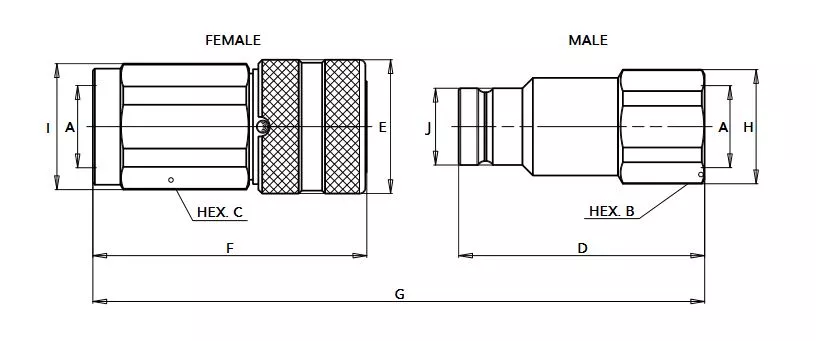

Size Diagram
| WEIGHT | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DESC. | BODY SIZE | A | UNIT | B | C | D | E | F | G | H | I | J | UNIT | MALE | FEMALE |
| A4HP | 1/8 | 1/8 | mm | 17.0 | 17.0 | 36.2 | 22.0 | 44.0 | 72.3 | 18.5 | 21.8 | 12.0 | kg | 0.041 | 0.090 |
| inch | 0.67 | 0.67 | 1.43 | 0.87 | 1.73 | 2.85 | 0.73 | 0.86 | 0.47 | lb | 0.09 | 0.20 | |||
| A5HP | 1/4 | 1/4 | mm | 22.0 | 22.0 | 47.9 | 29.0 | 58.0 | 94.9 | 23.8 | 29.0 | 16.5 | kg | 0.090 | 0.205 |
| inch | 0.87 | 0.87 | 1.89 | 1.14 | 2.28 | 3.74 | 0.94 | 1.14 | 0.65 | lb | 0.20 | 0.45 | |||
| A5HP | 1/4 | 3/8 | mm | 24.0 | 24.0 | 54.9 | 29.0 | 60.0 | 103.9 | 26.0 | 29.0 | 16.5 | kg | 0.107 | 0.209 |
| inch | 0.94 | 0.94 | 2.16 | 1.14 | 2.36 | 4.09 | 1.02 | 1.14 | 0.65 | lb | 0.24 | 0.46 | |||
| A9HP | 3/8 | 3/8 | mm | 27.0 | 30.0 | 60.0 | 34.0 | 64.6 | 108.8 | 29.0 | 32.0 | 19.5 | kg | 0.153 | 0.322 |
| inch | 1.06 | 1.18 | 2.36 | 1.34 | 2.54 | 4.28 | 1.14 | 1.26 | 0.77 | lb | 0.34 | 0.71 | |||
| A9HP | 3/8 | 1/2 | mm | 27.0 | 30.0 | 62.5 | 34.0 | 69.6 | 116.3 | 29.0 | 32.0 | 19.5 | kg | 0.144 | 0.308 |
| inch | 1.06 | 1.18 | 2.46 | 1.34 | 2.74 | 4.58 | 1.14 | 1.26 | 0.77 | lb | 0.32 | 0.68 | |||
A-HP NPT Thread
| PART | BODYSIZE | PORTSIZE | THREADTYPE | ORDER CODE | DESCRIPTION |
|---|---|---|---|---|---|
| COUPLER | 1/8 | 1/8 | FEMALE NPT | 801601014 | F. A4 HP 1/8 NPT |
| NIPPLE | 1/8 | 1/8 | FEMALE NPT | 801601015 | M. A4 HP 1/8 NPT |
| COUPLER | 1/4 | 1/4 | FEMALE NPT | 801601004 | F. A5 HP 1/4 NPT |
| NIPPLE | 1/4 | 1/4 | FEMALE NPT | 801601005 | M. A5 HP 1/4 NPT |
| COUPLER | 1/4 | 3/8 | FEMALE NPT | 801601008 | F. A5 HP 3/8 NPT |
| NIPPLE | 1/4 | 3/8 | FEMALE NPT | 801601009 | M. A5 HP 3/8 NPT |
| COUPLER | 3/8 | 3/8 | FEMALE NPT | 801601010 | F. A9 HP 3/8 NPT |
| NIPPLE | 3/8 | 3/8 | FEMALE NPT | 801601011 | M. A9 HP 3/8 NPT |
| COUPLER | 3/8 | 1/2 | FEMALE NPT | 801601012 | F. A9 HP 1/2 NPT |
| NIPPLE | 3/8 | 1/2 | FEMALE NPT | 801601013 | M. A9 HP 1/2 NPT |
| COUPLER | 1/4 | 1/8 | MALE NPT | 801601016 | F. A5HP 1/8 NPT EXT |
| COUPLER | 1/4 | 1/4 | MALE NPT | 801601018 | F. A5HP 1/4 NPT EXT |
| NIPPLE | 1/4 | 1/4 | MALE NPT | 801601019 | M. A5HP 1/4 NPT EXT |
