Description

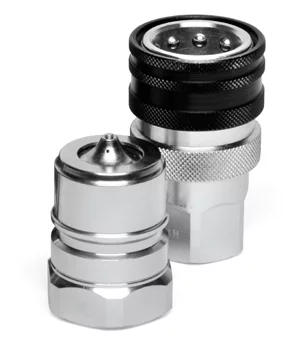

EURO Poppet Interchange
FEATURES
- Size range: 1/4” thru 1”
- Port options: NPT, BSP
- Interchanges with Tema T
- Working pressure: 33-60 MPa/4785-8700 psi range
- Compact design
- Internal parts designed to reduce turbulence and pressure drop
- Additional O-ring for extra sealing capacity and to contain spray
APPLICATIONS
- Anywhere requiring high resistance to pressure impulses
- Mobile machinery
- Chemical industries, industrial plants and material handling

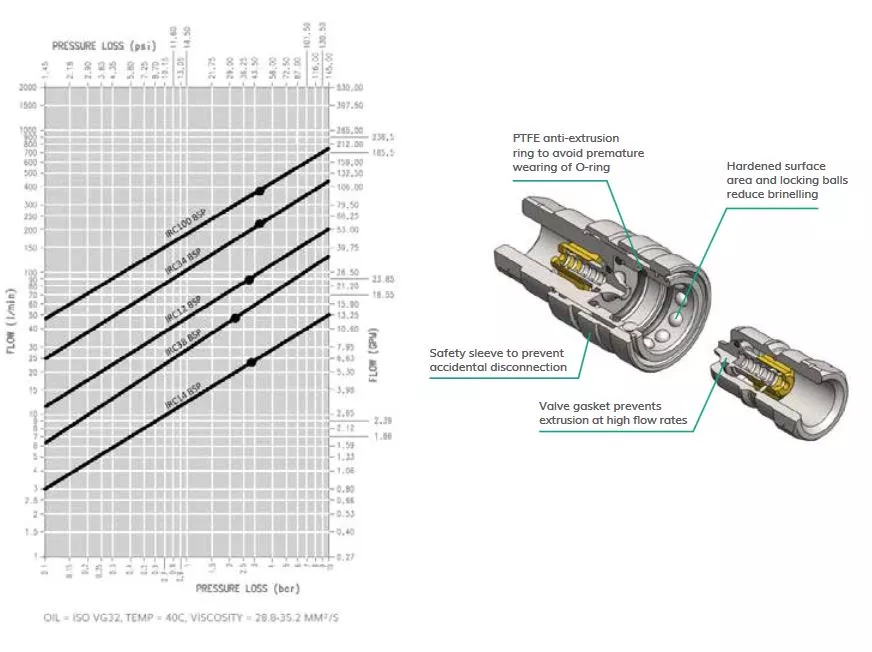

Pressure Drop
| MAX. OPERATING PRESSURE COUPLED | BURST PRESSURE COUPLED | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| MALE | FEMALE | |||||||||
| DESCRIPTION | SIZE | ISO SIZE | MPa | psi | MPa | psi | MPa | psi | MPa | psi |
| IR Series | ||||||||||
| IRC14 | 1/4 | 6.3 | 60 | 8700 | 180 | 26100 | 120 | 17400 | 120 | 17400 |
| IRC38 | 3/8 | 10.0 | 46 | 6742.5 | 130 | 18850 | 110 | 15950 | 110 | 15950 |
| IRC12 | 1/2 | 12.5 | 40 | 5800 | 110 | 15950 | 100 | 14500 | 100 | 14500 |
| IRC34 | 3/4 | 20.0 | 33 | 5365 | 100 | 14500 | 80 | 11600 | 80 | 11600 |
| IRC100 | 1 | 25.0 | 33 | 4785 | 100 | 14500 | 100 | 14500 | 100 | 14500 |

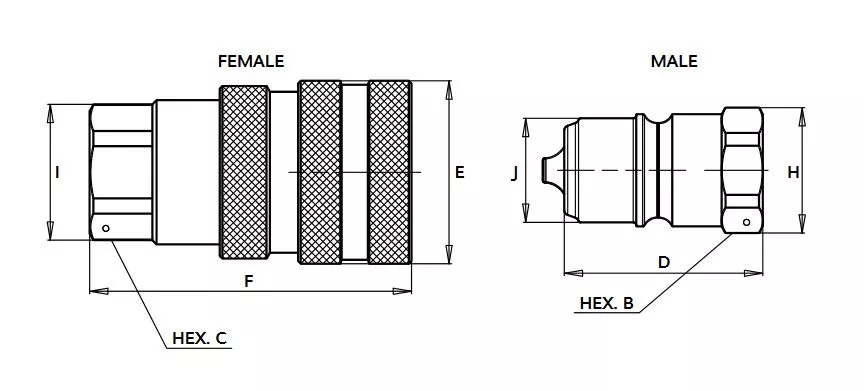

Size Diagram
| WEIGHT | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DESCRIPTION | BODYSIZE | A | B | C | D | E | F | G | H | I | J | MALE | FEMALE |
| IRC14 NPTF | 6.3 | 1/4 | 19 | 21 | 48.2 | 26 | 60 | 81.7 | 21 | 23 | 11.95 | 51 | 145 |
| IRC38 NPTF | 10 | 3/8 | 22 | 24 | 38 | 35 | 61.6 | 76.4 | 24 | 26 | 19.9 | 57 | 222 |
| IRC12 NPTF | 12.5 | 1/2 | 27 | 30 | 42.5 | 41 | 67.6 | 85.2 | 29 | 33 | 24.7 | 99 | 327 |
| IRC34 NPTF | 20 | 3/4 | 36 | 38 | 47 | 52 | 76.2 | 94.6 | 39 | 41.6 | 32.7 | 189 | 575 |
| IRC100 NPTF | 25 | 1 | 45 | 45 | 56.5 | 62 | 92 | 113.4 | 48 | 48 | 40.9 | 352 | 971 |
IRC NPT and BSP Thread Tema “T” Series | European Interchange
| PART | BODY SIZE | PORT SIZE | THREAD TYPE | ORDER CODE | DESCRIPTION |
|---|---|---|---|---|---|
| IRC NPT THREAD | |||||
| COUPLER | 1/4 | 1/4 | NPT | 807902000 | F. IRC 14 NPTF |
| NIPPLE | 1/4 | 1/4 | NPT | 807902001 | M. IRC 14 NPTF |
| COUPLER | 3/8 | 3/8 | NPT | 807902002 | F. IRC 38 NPTF |
| NIPPLE | 3/8 | 3/8 | NPT | 807902003 | M. IRC 38 NPTF |
| COUPLER | 1/2 | 1/2 | NPT | 807902004 | F. IRC 12 NPTF |
| NIPPLE | 1/2 | 1/2 | NPT | 807902005 | M. IRC 12 NPTF |
| COUPLER | 3/4 | 3/4 | NPT | 807902006 | F. IRC 34 NPTF |
| NIPPLE | 3/4 | 3/4 | NPT | 807902007 | M. IRC 34 NPTF |
| COUPLER | 1 | 1 | NPT | 807902008 | F. IRC 100 NPTF |
| NIPPLE | 1 | 1 | NPT | 807902009 | M. IRC 100 NPTF |

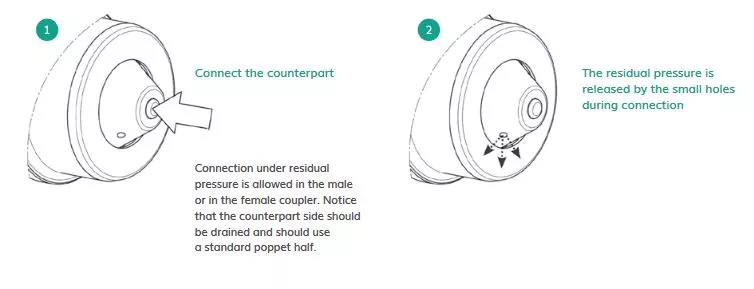

| IRH NPT THREAD – CONNECT UNDER PRESSURE VALVE | |||||
| COUPLER | 3/8 | 3/8 | NPT | 807902010 | F. IRC 38PC NPTF |
| NIPPLE | 3/8 | 3/8 | NPT | 807902011 | M. IRC 38PC NPTF |
| COUPLER | 1/2 | 1/2 | NPT | 807902012 | F. IRC 12PC NPTF |
| NIPPLE | 1/2 | 1/2 | NPT | 807902013 | M. IRC 12PC NPTF |
| COUPLER | 3/4 | 3/4 | NPT | 807902014 | F. IRC 34PC NPTF |
| NIPPLE | 3/4 | 3/4 | NPT | 807902015 | M. IRC 34PC NPTF |
| COUPLER | 1 | 1 | NPT | 807902016 | F. IRC 100PC NPTF |
| NIPPLE | 1 | 1 | NPT | 807902017 | M. IRC 100PC NPTF |
| IRH BSP THREAD | |||||
| COUPLER | 3/4 | 3/4 | BSP | 807900006 | F. IRC 34 BSP |
| NIPPLE | 3/4 | 3/4 | BSP | 807900007 | M. IRC 34 BSP |
| COUPLER | 1 | 1 | BSP | 807900008 | F. IRC 100 BSP |
| NIPPLE | 1 | 1 | BSP | 807900009 | M. IRC 100 BSP |
| IRH BSP THREAD – CONNECT UNDER PRESSURE VALVE | |||||
| COUPLER | 3/4 | 3/4 | BSP | 807900014 | F. IRC 34PC BSP |
| NIPPLE | 3/4 | 3/4 | BSP | 807900015 | M. IRC 34PC BSP |
