Description

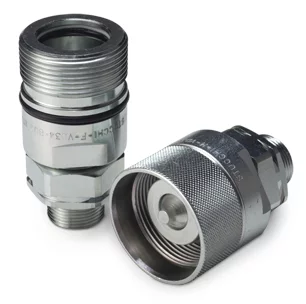

European Screw Coupler
FEATURES
- Size range: 1/4” thru 1 1/4”
- Port options: BSP, NPT, DIN
- Interchangeable with German market couplings
- Hardened valve body for impulse applications and friction ring prevents accidental disconnection
- Internal components purposely designed to reduce turbulence
- Metal shoulder to protect the O-ring seal on female coupling
- Available in 1/4 inch to 1 1/4 inch sizes
APPLICATIONS
- Ideally suited for hydraulic systems experiencing pressure spikes or impulses
- Serve variety of hydraulic needs in mobile crane, vibratory hammer, oil patch and industrial plant applications
- Suited for heavy-duty service conditions

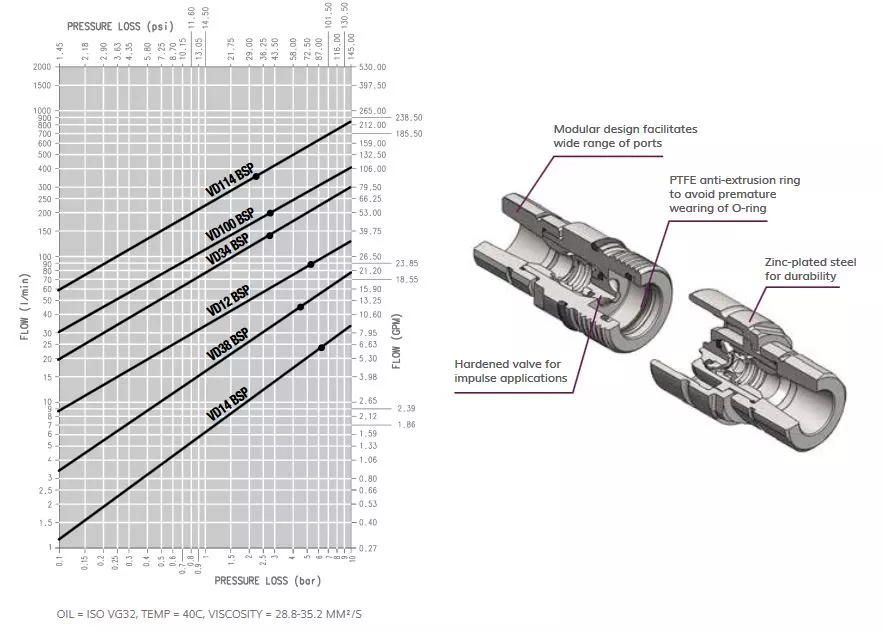

Pressure Drop
Performance
| MAX. WORKING PRESSURE CONNECTED | |||
|---|---|---|---|
| DESCRIPTION | SIZE | MPa | psi |
| VD14 | 1/4 | 45 | 6527 |
| VD38 | 3/8 | 45 | 6527 |
| VD12 | 1/2 | 40 | 5801 |
| VD34 | 3/4 | 40 | 5801 |
| VD100 | 1 | 30 | 4351 |
| VD114 | 1 1/4 | 30 | 4351 |
VD Series Accessories Protective Caps and Plugs | Color Red
| ORDER CODE | ||||
|---|---|---|---|---|
| DESCRIPTION | SIZE | PLUG FOR FEMALE | CAP FOR MALE | |
| VD14 | 1/4 | 814900000 | 814900001 | |
| VD38 | 3/8 | 814900002 | 814900003 | |
| VD12 | 1/2 | 814900004 | 814900005 | |
| VD34 | 3/4 | 814900006 | 814900007 | |
| VD100 | 1 | 814900008 | 814900009 | |
| VD114 | 1 1/4 | 814900010 | 814900011 | |

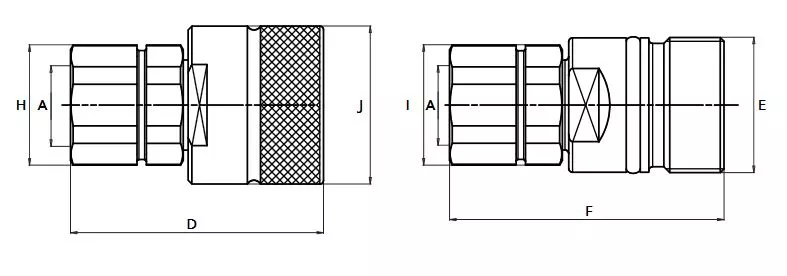

Size Diagram
* Hexagon Sleeve
| DESCRIPTION | BODYSIZE | A | DIMENSION | D | E | F | H | I | J |
|---|---|---|---|---|---|---|---|---|---|
| VD38 | 3/8 | 3/8 | mm | 60.7 | 28 | 63.3 | 24 | 24 | 34 |
| inch | 2.39 | 1.1 | 2.49 | 0.94 | 0.94 | 1.34 | |||
| VD12 | 1/2 | 1/2 | mm | 67.3 | 36 | 73 | 32 | 32 | 42 |
| inch | 2.65 | 1.42 | 2.87 | 1.26 | 1.26 | 1.65 | |||
| VD34 | 3/4 | 3/4 | mm | 72.5 | 42 | 82 | 40 | 40 | 48 |
| inch | 2.85 | 1.65 | 3.23 | 1.57 | 1.57 | 1.89 | |||
| VD100 | 1 | 1 | mm | 82.5 | 48 | 99 | 45 | 45 | 55 |
| inch | 3.25 | 1.89 | 3.9 | 1.77 | 1.77 | 2.17 | |||
| VD114 | 1 1/4 | 1 1/4 | mm | 121 | 70 | 117.2 | 61 | 61 | 85 / 80* |
| inch | 4.76 | 2.76 | 4.61 | 2.40 | 2.40 | 3.35/3.15* |
* Hexagon Sleeve
VD BSP Thread Screw Poppet Interchange
| PART | BODYSIZE | THREADTYPE | THREADSIZE | PORTTHREAD | ORDER CODE | DESCRIPTION | ||
|---|---|---|---|---|---|---|---|---|
| VD BSP THREAD | ||||||||
| COUPLER | 3/8 | BSP | 1/4 | 1/4-9 | 809500008 | F. VD38 1/4 BSP | ||
| NIPPLE | 3/8 | BSP | 1/4 | 1/4-9 | 809500009 | M. VD38 1/4 BSP | ||
| COUPLER | 3/8 | BSP | 3/8 | 3/8-19 | 809500010 | F. VD38 3/8 BSP | ||
| NIPPLE | 3/8 | BSP | 3/8 | 3/8-19 | 809500011 | M. VD38 3/8 BSP | ||
| COUPLER | 3/8 | BSP | 3/8 | 3/8-19 | 809500012 | F. VD38 3/8 BSP EST DIN3852-2-A | ||
| NIPPLE | 3/8 | BSP | 3/8 | 3/8-19 | 809500013 | M. VD38 3/8 BSP EST DIN3852-2-A | ||
| COUPLER | 1/2 | BSP | 3/8 | 3/8-19 | 809500000 | F. VD12 3/8 BSP | ||
| NIPPLE | 1/2 | BSP | 3/8 | 3/8-19 | 809500001 | M. VD12 3/8 BSP | ||
| COUPLER | 1/2 | BSP | 1/2 | 1/2-4 | 809500002 | F. VD12 1/2 BSP | ||
| NIPPLE | 1/2 | BSP | 1/2 | 1/2-4 | 809500003 | M. VD12 1/2 BSP | ||
| COUPLER | 1/2 | BSP | 1/2 | 1/2-4 | 809500004 | F. VD12 1/2 BSP EST | ||
| NIPPLE | 1/2 | BSP | 1/2 | 1/2-4 | 809500005 | M. VD12 1/2 BSP EST | ||
| COUPLER | 3/4 | BSP | 1/2 | 1/2-4 | 809500014 | F. VD34 1/2 BSP | ||
| NIPPLE | 3/4 | BSP | 1/2 | 1/2-4 | 809500015 | M. VD34 1/2 BSP | ||
| COUPLER | 3/4 | BSP | 3/4 | 3/4-14 | 809500016 | F. VD34 3/4 BSP | ||
| NIPPLE | 3/4 | BSP | 3/4 | 3/4-14 | 809500017 | M. VD34 3/4 BSP | ||
| COUPLER | 1 | BSP | 3/4 | 3/4-14 | 809500018 | F. VD100 3/4 BSP | ||
| NIPPLE | 1 | BSP | 3/4 | 3/4-14 | 809500019 | M. VD100 3/4 BSP | ||
| COUPLER | 1 | BSP | 1 | 1-11 | 809500020 | F. VD100 1 BSP | ||
| NIPPLE | 1 | BSP | 1 | 1-11 | 809500021 | M. VD100 1 BSP | ||
| COUPLER | 1 1/4 | BSP | 1 1/4 | 1 1/4-11 | 809500022 | F. VD114 1 1/4 BSP | ||
| NIPPLE | 1 1/4 | BSP | 1 1/4 | 1 1/4-11 | 809500023 | M. VD114 1 1/4 BSP | ||
| COUPLER | 1 1/4 | BSP | 1 1/2 | 1 1/2-11 | 809500024 | F. VD114 1 1/2 BSP | ||
| NIPPLE | 1 1/4 | BSP | 1 1/2 | 1 1/2-11 | 809500025 | M. VD114 1 1/2 BSP | ||
VD NPT Thread Screw Poppet Interchange
| PART | BODY SIZE | THREAD TYPE | THREAD SIZE | PORT THREAD | ORDER CODE | DESCRIPTION | |
|---|---|---|---|---|---|---|---|
| VD NPT THREAD | |||||||
| COUPLER | 3/8 | NPT | 1/4 | 1/4-18 | 809501008 | F. VD38 1/4 NPT | |
| NIPPLE | 3/8 | NPT | 1/4 | 1/4-18 | 809501009 | M. VD38 1/4 NPT | |
| COUPLER | 3/8 | NPT | 3/8 | 3/8-18 | 809501010 | F. VD38 3/8 NPT | |
| NIPPLE | 3/8 | NPT | 3/8 | 3/8-18 | 809501011 | M. VD38 3/8 NPT | |
| COUPLER | 1/2 | NPT | 3/8 | 3/8-18 | 809501000 | F. VD12 3/8 NPT | |
| NIPPLE | 1/2 | NPT | 3/8 | 3/8-18 | 809501001 | M. VD12 3/8 NPT | |
| COUPLER | 1/2 | NPT | 1/2 | 1/2-14 | 809501002 | F. VD12 1/2 NPT | |
| NIPPLE | 1/2 | NPT | 1/2 | 1/2-14 | 809501003 | M. VD12 1/2 NPT | |
| COUPLER | 3/4 | NPT | 1/2 | 1/2-14 | 809501014 | F. VD34 1/2 NPT | |
| NIPPLE | 3/4 | NPT | 1/2 | 1/2-14 | 809501015 | M. VD34 1/2 NPT | |
| COUPLER | 3/4 | NPT | 3/4 | 3/4-14 | 809501016 | F. VD34 3/4 NPT | |
| NIPPLE | 3/4 | NPT | 3/4 | 3/4-14 | 809501017 | M. VD34 3/4 NPT | |
| COUPLER | 1 | NPT | 3/4 | 3/4-14 | 809501018 | F. VD100 3/4 NPT | |
| NIPPLE | 1 | NPT | 3/4 | 3/4-14 | 809501019 | M. VD100 3/4 NPT | |
| COUPLER | 1 | NPT | 1 | 1 11 1/2 | 809501020 | F. VD100 1 NPT | |
| NIPPLE | 1 | NPT | 1 | 1 11 1/2 | 809501021 | M. VD100 1 NPT | |
| COUPLER | 1 1/4 | NPT | 1 1/4 | 1 1/4-11 1/2 | 809501022 | F. VD114 1 1/4 NPT | |
| NIPPLE | 1 1/4 | NPT | 1 1/4 | 1 1/4-11 1/2 | 809501023 | M. VD114 1 1/4 NPT | |
| COUPLER | 1 1/4 | NPT | 1 1/2 | 1 1/2-11 1/2 | 809501024 | F. VD114 1 1/2 NPT | |
| NIPPLE | 1 1/4 | NPT | 1 1/2 | 1 1/2-11 1/2 | 809501025 | M. VD114 1 1/2 NPT | |
VD DIN Thread SCHOTT (DIN Bulkhead) | Screw Poppet Interchange
| BODY PART | THREAD SIZE | PORT TYPE | TUBE SERIES | THREAD OD | SIZE | ORDER CODE | DESCRIPTION | |||
|---|---|---|---|---|---|---|---|---|---|---|
| VD DIN THREAD | ||||||||||
| COUPLER | 1/2 | DIN | FEMALE | 22 | M22X1.5 | 809512000 | F. VD12 M22X1.5 | |||
| NIPPLE | 1/2 | DIN | FEMALE | 22 | M22X1.5 | 809512001 | M. VD12 M22X1.5 | |||
| COUPLER | 1/2 | DIN | L | 12 | M 18X1.5 | 809508000 | F. VD12 L12 | |||
| NIPPLE | 1/2 | DIN | L | 12 | M 18X1.5 | 809508001 | M. VD12 L12 | |||
| COUPLER | 1/2 | DIN | L | 15 | M 22X1.5 | 809508004 | F. VD12 L15 | |||
| NIPPLE | 1/2 | DIN | L | 15 | M 22X1.5 | 809508005 | M. VD12 L15 | |||
| COUPLER | 1/2 | DIN | L | 18 | M 26X1.5 | 809508008 | F. VD12 L18 | |||
| NIPPLE | 1/2 | DIN | L | 18 | M 26X1.5 | 809508009 | M. VD12 L18 | |||
| COUPLER | 1/2 | DIN | L | 12 | M 18X1.5 SCHOTT | 809510000 | F. VD12 L12 SCHOTT | |||
| NIPPLE | 1/2 | DIN | L | 12 | M 18X1.5 SCHOTT | 809510001 | M. VD12 L12 SCHOTT | |||
| COUPLER | 1/2 | DIN | L | 15 | M 22X1.5 SCHOTT | 809510004 | F. VD12 L15 SCHOTT | |||
| NIPPLE | 1/2 | DIN | L | 15 | M 22X1.5 SCHOTT | 809510005 | M. VD12 L15 SCHOTT | |||
| COUPLER | 3/4 | DIN | S | 16 | M 24X1.5 | 809509014 | F. VD34 S16 | |||
| NIPPLE | 3/4 | DIN | S | 16 | M 24X1.5 | 809509015 | M. VD34 S16 | |||
| COUPLER | 3/4 | DIN | S | 16 | M 24X1.5 SCHOTT | 809511014 | F. VD34 S16 SCHOTT | |||
| COUPLER | 3/4 | DIN | S | 20 | M 30X1.5 SCHOTT | 809511016 | F. VD34 S20 SCHOTT | |||
| NIPPLE | 3/4 | DIN | S | 20 | M 30X1.5 SCHOTT | 809511017 | M. VD34 S20 SCHOTT | |||
| COUPLER | 3/4 | DIN | FEMALE | 22 | M 22X1.5 | 809512002 | F. VD34 M22X1.5 | |||
| NIPPLE | 3/4 | DIN | FEMALE | 22 | M 22X1.5 | 809512003 | M. VD34 M22X1.5 | |||
| COUPLER | 1 | DIN | S | 20 | M 30X2 | 809509018 | F. VD100 S20 | |||
| NIPPLE | 1 | DIN | S | 20 | M 30X2 | 809509019 | M. VD100 S20 | |||
| COUPLER | 1 | DIN | S | 25 | M 36X2 | 809509020 | F. VD100 S25 | |||
| NIPPLE | 1 | DIN | S | 25 | M 36X2 | 809509021 | M. VD100 S25 | |||
| COUPLER | 1 | DIN | S | 30 | M 42X2 | 809509022 | F. VD100 S30 | |||
| NIPPLE | 1 | DIN | S | 30 | M 42X2 | 809509023 | M. VD100 S30 | |||
| COUPLER | 1 | DIN | S | 20 | M 30X2 SCHOTT | 809511018 | F. VD100 S20 SCHOTT | |||
| NIPPLE | 1 | DIN | S | 20 | M 30X2 SCHOTT | 809511019 | M. VD100 S20 SCHOTT | |||
| COUPLER | 1 | DIN | S | 25 | M 36X2 SCHOTT | 809511020 | F. VD100 S25 SCHOTT | |||
| NIPPLE | 1 | DIN | S | 25 | M 36X2 SCHOTT | 809511021 | M. VD100 S25 SCHOTT | |||
| COUPLER | 1 | DIN | S | 30 | M 42X2 SCHOTT | 809511022 | F. VD100 S30 SCHOTT | |||
| NIPPLE | 1 | DIN | S | 30 | M 42X2 SCHOTT | 809511023 | M. VD100 S30 SCHOTT | |||
| COUPLER | 1 | DIN | S | 38 | M 52X2 SCHOTT | 809511024 | F. VD100 S38 SCHOTT | |||
| COUPLER | 1 1/4 | DIN | S | 38 | M 52X2 | 809509028 | F. VD114 S38 | |||
| NIPPLE | 1 1/4 | DIN | S | 38 | M 52X2 | 809509029 | M. VD114 S38 | |||
| COUPLER | 1 1/4 | DIN | S | 38 | M 52X2 SCHOTT | 809511028 | F. VD114 S38 SCHOTT | |||
| NIPPLE | 1 1/4 | DIN | S | 38 | M 52X2 SCHOTT | 809511029 | M. VD114 S38 SCHOTT | |||
