Enerpac / Hydraulic Jack, Parker 3000 Interchange
FEATURES
- Size range: 1/4” thru 3/8”
- Port options: NPT
- Interchanges with Enerpac/Hydraulic Jack, Parker 3000
- Working pressure: 700 bar/10,000 psi
- Threaded sleeve for connection/disconnection
APPLICATIONS
- Construction equipment
- Emergency cutting tools, hydraulic wrenches, tools

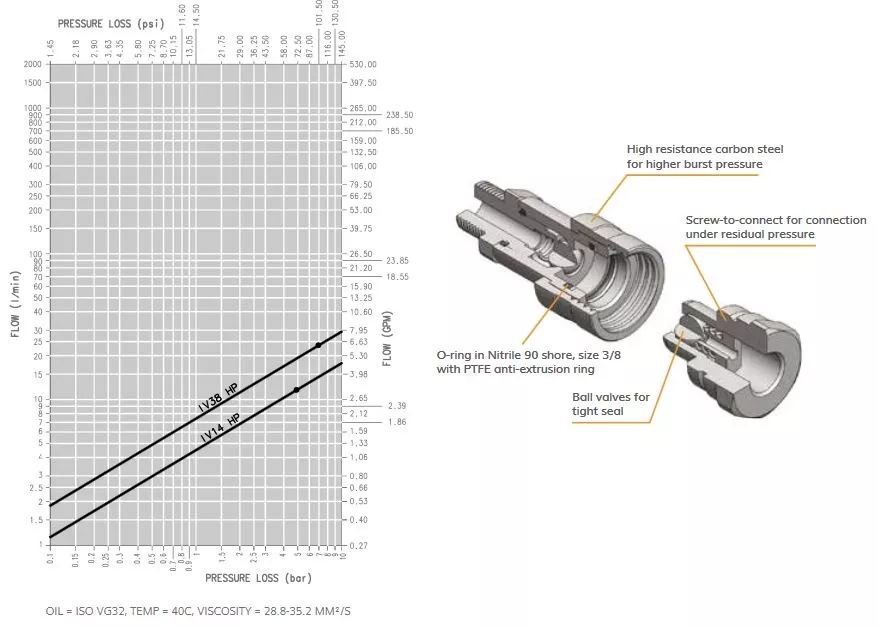

Pressure Drop
Performance
| NOMINAL SIZE | ISO SIZE | MAX OPERATING PRESSURECOUPLED | BURST PRESSURECOUPLED | |||
|---|---|---|---|---|---|---|
| DESCRIPTION | inch | mm | bar | psi | bar | pso |
| IVHP 1/4 | 1/4 | 6.3 | 700 | 10,000 | 2500 | 35,714 |
| IVHP 3/8 | 3/8 | 10.0 | 700 | 10,000 | 2350 | 33,570 |

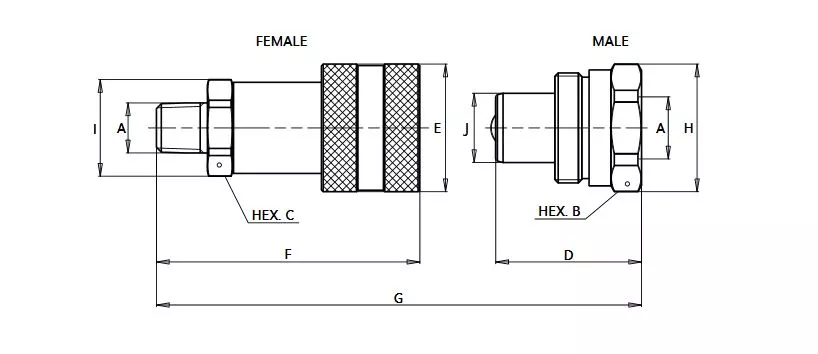

Size Diagram
| DESC. | BODY SIZE | UNIT | A | B | C | D | E | F | G | H | UNIT | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| F-IV14HP | 1/4 | mm | 28.0 | 20.5 | 98.0 | 24.0 | – | – | – | – | kg | 0.045 |
| inch | 1.10 | 0.81 | 3.86 | 0.94 | – | – | – | – | lb | 0.10 | ||
| M-IV14HP | 1/4 | mm | – | – | – | – | 28.0 | 28.5 | 98.0 | 24.0 | kg | 0.040 |
| inch | – | – | – | – | 1.10 | 1.12 | 3.86 | 0.94 | lb | 0.09 | ||
| F-IV38HP | 3/8 | mm | 35.0 | 23.5 | 110.0 | 24.0 | – | – | – | – | kg | 0.070 |
| inch | 1.38 | 0.93 | 4.33 | 0.94 | – | – | – | – | lb | 0.15 | ||
| M-IV38HP | 3/8 | mm | – | – | – | – | 35.0 | 36.6 | 110.0 | 24.0 | kg | 0.095 |
| inch | – | – | – | – | 1.38 | 1.44 | 4.33 | 0.94 | lb | 0.21 |
IVHP 10,000 psi NPT Thread Thread to Connect High Pressure
| PART | BODYSIZE | PORTSIZE | THREADTYPE | ORDER CODE | DESCRIPTION |
|---|---|---|---|---|---|
| IVHP NPT MALE & FEMALE THREAD | |||||
| COUPLER | 1/4 | 1/4 | NPT MALE | 800201008 | F. IVHP 1/4 NPT EXT |
| NIPPLE | 1/4 | 1/4 | NPT FEMALE | 800201009 | M. IVHP 1/4 NPT |
| COUPLER | 3/8 | 3/8 | NPT MALE | 800201004 | F. IVHP 3/8 NPT EXT |
| NIPPLE | 3/8 | 3/8 | NPT FEMALE | 800201005 | M. IVHP 3/8 NPT |
| NIPPLE | 1/4 | 1/4 | NPT MALE | 800201010 | M. IVHP 1/4 NPT |
| COUPLER | 3/8 | 3/8 | NPT FEMALE | 800201014 | F. IVHP 3/8 NPT |

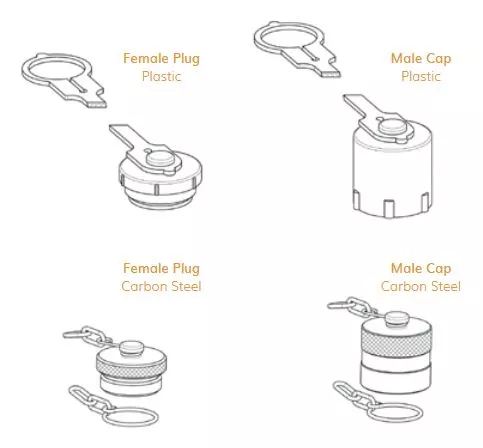

IVHP Series Accessories Metal and Plastic Caps
| DESCRIPTION | ORDER CODE | |||
|---|---|---|---|---|
| IVHP METAL CAPS | ||||
| CAP F. IV38HP | 815605002 | |||
| CAP M. IV38HP | 815605003 | |||
| CAP F. IV14HP | 815605004 | |||
| CAP M. IV14HP | 815605005 | |||
| IVHP PLASTIC CAPS | ||||
| CAP F. IV14HP BLACK PLASTIC | 815603010 | |||
| CAP M. IV14HP BLACK PLASTIC | 815603011 | |||
| CAP F. IV38HP BLACK PLASTIC | 815603012 | |||
| CAP M. IVHP38 BLACK PLASTIC | 815603013 | |||
