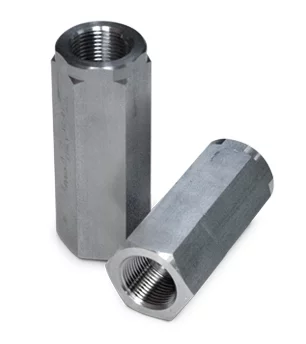

VUX SERIES

The VUX Series Check Valves are used in any type of hydraulic circuit, with a safe, compact design suitable to any hydraulic application using non-corrosive liquids. The VUX size range is offered at a standard opening of 7.5 psi. The VUX series can also be used as a pressure sequence valve by adjusting the internal spring loading to the required cracking point, according to the valve size.

Description

FEATURES
  • Size range: 1/4” thru 1 1/2”
  • Port options: NPT
  • Standard NPT threads
  • Standard crack 7.5 psi
  • Material: AISI 316 stainless steel
  • Closing spring: AISI 316 stainless steel; check valve: AISI 630 stainless steel
APPLICATIONS
  • Any type of hydraulic circuit
  • Any hydraulic application using non-corrosive liquids
  • As pressure sequence valve, by adjusting the internal spring loading to the required cracking point according to valve size

Additional information

Body Size

, , , , , , ,

Material

Port Options

Port Size

, , , , , , ,

Working Pressure

Specifications
