Description
H‐IH Interchange
FEATURES
- Size range: 1/4” thru 2”
- Port options: NPT
- Interchanges with Snap-Tite H, Faster TNV, Dixon V
- Working pressure: 19-35 MPa/2755-5075 psi range
- Simple-to-use, compact design
- Machined components from high-strength steel
- PTFE anti-extrusion ring to protect seal components
APPLICATIONS
- General purpose coupler used across various applications
- Anywhere high resistance to impulse pressures is needed
Size Diagram
Performance
| MAX. OPERATING PRESSURE COUPLED | BURST PRESSURE | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| NOMINAL SIZE | RATED FLOW | MALE | FEMALE | COUPLED | FLUID SPILLAGE | |||||
| SIZE | ISO | MPa | (L/M) | MPa | psi | MPa | psi | MPa | psi | (cc) |
| 1/4 | 6.3 | 35 | 12 | 151 | 21895 | 176 | 25520 | 145 | 21025 | 0.5 |
| 3/8 | 10 | 35 | 23 | 147 | 21315 | 152 | 22040 | 159 | 23055 | 1.9 |
| 1/2 | 12.5 | 25 | 45 | 100 | 14500 | 146 | 21170 | 124 | 17980 | 2.7 |
| 3/4 | 20 | 25 | 106 | 90 | 13050 | 153 | 22185 | 104 | 15080 | 9.3 |
| 1 | 25 | 20 | 189 | 130 | 18850 | 96 | 13920 | 130 | 18850 | 16 |
| 1 1/4 | 31.5 | 20 | 288 | 114 | 16530 | 85 | 12325 | 109 | 15805 | 30 |
| 1 1/2 | 40 | 19 | 379 | 81 | 11745 | 79 | 11455 | 82 | 11890 | 54 |
| 2 | 50 | 19 | 757 | 65 | 9425 | 96 | 13920 | 110 | 15950 | 120 |

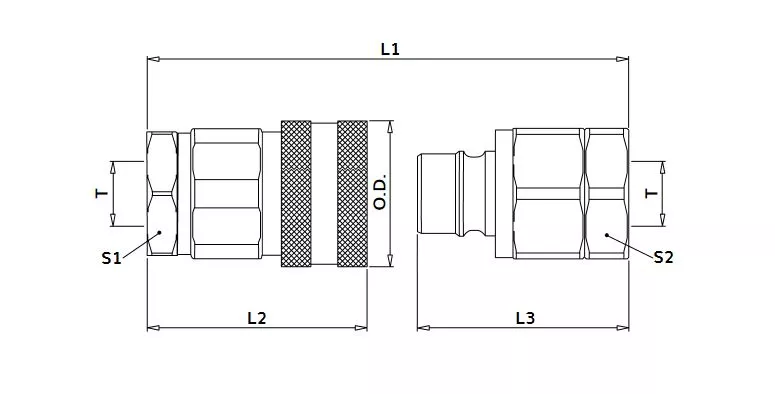

Size Diagram
| BODY SIZE | ISO | L1 | L2 | L3 | OD | S1 | S2 | T |
|---|---|---|---|---|---|---|---|---|
| 1/4 | 6.3 | 70.3 | 44 | 41.3 | 24 | 22 | 22 | 1/4 NPT |
| 3/8 | 10 | 78.5 | 49.4 | 47 | 27 | 26 | 26 | 3/8 NPT |
| 1/2 | 12.5 | 87.3 | 53.5 | 51 | 34 | 30 | 30 | 1/2 NPT |
| 3/4 | 20 | 104 | 63 | 62 | 42 | 38 | 38 | 3/4 NPT |
| 1 | 25 | 112.5 | 68.3 | 66.8 | 50.5 | 48 | 48 | 1 NPT |
| 1 1/4 | 31.5 | 156.5 | 91 | 88 | 56 | 50 | 50 | 1 1/4 NPT |
| 1 1/2 | 40 | 148.2 | 90 | 85.6 | 70 | 64 | 64 | 1 1/2 NPT |
| 2 | 50 | 171 | 105 | 99 | 90 | 89 | 89 | 2 NPT |

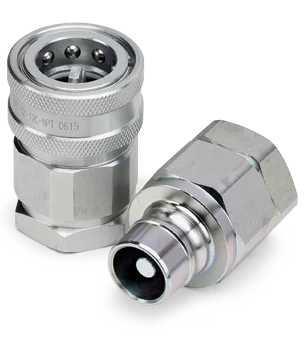

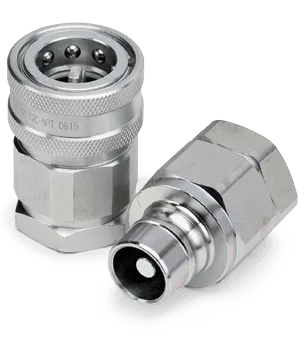

SH Series NPT Thread H-IH Interchange
| PART | BODY SIZE | PORT SIZE | THREAD TYPE | ORDER CODE | DESCRIPTION |
|---|---|---|---|---|---|
| COUPLER | 1/4 | 1/4 | NPT | SH-04-04C-NPT | F. SH 1/4 NPT |
| NIPPLE | 1/4 | 1/4 | NPT | SH-04-04N-NPT | M. SH 1/4 NPT |
| COUPLER | 3/8 | 3/8 | NPT | SH-06-06C-NPT | F. SH 3/8 NPT |
| NIPPLE | 3/8 | 3/8 | NPT | SH-06-06N-NPT | M. SH 3/8 NPT |
| COUPLER | 1/2 | 1/2 | NPT | SH-08-08C-NPT | F. SH 1/2 NPT |
| NIPPLE | 1/2 | 1/2 | NPT | SH-08-08N-NPT | M. SH 1/2 NPT |
| COUPLER | 3/4 | 3/4 | NPT | SH-12-12C-NPT | F. SH 3/4 NPT |
| NIPPLE | 3/4 | 3/4 | NPT | SH-12-12N-NPT | M. SH 3/4 NPT |
| COUPLER | 1 | 1 | NPT | SH-16-16C-NPT | F. SH 1 NPT |
| NIPPLE | 1 | 1 | NPT | SH-16-16N-NPT | M. SH 1 NPT |
| COUPLER | 1 1/4 | 1 1/4 | NPT | SH-20-20C-NPT | F. SH 1 1/4 NPT |
| NIPPLE | 1 1/4 | 1 1/4 | NPT | SH-20-20N-NPT | M. SH 1 1/4 NPT |
| COUPLER | 1 1/2 | 1 1/2 | NPT | SH-24-24C-NPT | F. SH 1 1/2 NPT |
| NIPPLE | 1 1/2 | 1 1/2 | NPT | SH-24-24N-NPT | M. SH 1 1/2 NPT |
| COUPLER | 2 | 2 | NPT | SH-32-32C-NPT | F. SH 2 NPT |
| NIPPLE | 2 | 2 | NPT | SH-32-32N-NPT | M. SH 2 NPT |
SH Series Accessories Coupler Dust Plug | Nipple Dust Cap
| SIZE | ISO | ORDER CODE FEMALE DUST PLUG | ORDER CODE MALE DUST CAP | COLOR | MATERIAL |
|---|---|---|---|---|---|
| 1/4 | 6.3 | KSS-04F-PVC | KSS-04M-PVC | BLACK | PLASTIC |
| 3/8 | 10 | KSS-06F-PVC | KSS-06M-PVC | BLACK | PLASTIC |
| 1/2 | 12.5 | KSS-08F-PVC | KSS-08M-PVC | BLACK | PLASTIC |
| 3/4 | 20 | KSS-12F-PVC | KSS-12M-PVC | BLACK | PLASTIC |
| 1 | 25 | KSS-16F-PVC | KSS-16M-PVC | BLACK | PLASTIC |
