Custom Hydraulic Solutions

Custom Hydraulic Connection Solutions

Hydraulic systems are often built around standardized components, but complex machines frequently require connection solutions that go beyond standard couplings. Equipment manufacturers and industrial operators may encounter hydraulic layouts, operating conditions, or fluid requirements that cannot be addressed with off-the-shelf components.

Stucchi develops custom hydraulic connection solutions for applications where standard couplers cannot meet performance, durability, or integration requirements. Working closely with equipment operators, OEMs, and their distributors, Stucchi designs connection systems that integrate directly into the machine architecture and support reliable hydraulic performance in demanding environments.

These custom solutions may involve specialized coupler configurations, multi-coupling systems, stainless steel components for aggressive fluids, or hydraulic interfaces designed for automated equipment.

By combining engineering expertise with advanced manufacturing capabilities, Stucchi helps customers solve hydraulic connection challenges across a wide range of industries.

When Should You Consider a Custom Hydraulic Solution?

You may need a custom hydraulic connection system when:

• Standard couplers cannot fit the machine layout
• Multiple hydraulic circuits must connect simultaneously
• An automated connection is required
• Specialized fluids or environments are involved
• Equipment requires high-cycle attachment changes

When Standard Hydraulic Couplings Are Not Enough

Standard couplers work well for many hydraulic systems, but certain applications require more specialized solutions. Equipment designers may encounter challenges related to machine configuration, operating conditions, or connection frequency that standard components cannot easily accommodate.

Custom hydraulic connection systems are often required when equipment includes:

• Non-standard hydraulic layouts
• High-cycle connection points
• Multiple hydraulic circuits that must connect simultaneously
• Automated machine interfaces
• Aggressive or specialty fluids
• Space-constrained installations

In these situations, hydraulic connections must be engineered specifically for the machine and its operating environment.

Stucchi works directly with OEM engineers and equipment manufacturers to design hydraulic connection solutions that integrate seamlessly into the machine architecture while maintaining reliable performance and serviceability.

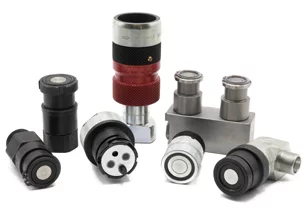

Types of Custom Hydraulic Connection Solutions

Custom hydraulic connections can take many forms depending on the machine architecture, operating environment, and performance requirements. Stucchi engineers work with OEMs and equipment designers to develop connection systems that integrate directly into the hydraulic circuit and support reliable operation in demanding applications.

These solutions often fall into several categories.

Hydraulic Circuit Integration

Many machines require hydraulic interfaces that connect power units, attachments, and specialized tooling. In these cases, couplers and connection points must be designed to fit the machine’s layout.

Examples include:

• Panel-mounted couplers integrated directly into machine frames
• Connections between hydraulic power packs and drilling or sawing heads
• Hydraulic interfaces between machines and attachments
• Connection systems for hydraulic tools
• Compact hydraulic microcircuits used in specialized equipment

These solutions help maintain organized hydraulic routing while improving serviceability and reducing connection errors.

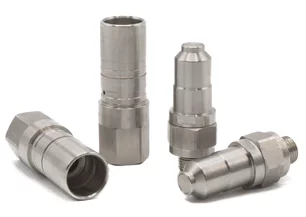

Stainless Steel and Specialty Fluid Applications

Certain industries require hydraulic components that can withstand aggressive environments, corrosive fluids, and harsh operating conditions. In these situations, material selection and sealing systems become critical.

Stucchi develops stainless steel and specialty-material couplings used in applications such as:

• Offshore and shipyard machinery
• Chemical processing systems
• Industrial cooling circuits
• Rubber and molding machine cooling systems
• Equipment handling aggressive or specialty fluids

By selecting the appropriate materials and sealing technologies, these custom solutions help maintain hydraulic reliability while protecting components from corrosion and fluid compatibility issues.

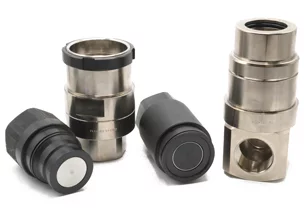

Multi-Coupling and Automated Connection Systems

Many machines operate multiple hydraulic circuits that must connect simultaneously during attachment changes or equipment setup. Multi-coupling systems allow operators to connect several hydraulic lines in a single motion, improving efficiency and reducing connection time.

These systems are commonly used in:

• Injection molding machines
• Rolling mill cooling and hydraulic systems
• Hydraulic press cooling circuits
• Automated production equipment
• Industrial automation systems

Multi-coupling plates can also be integrated into automated equipment in which hydraulic connections are operated mechanically or via machine control systems.

Industries and Equipment Applications

Custom hydraulic connection systems are used across a wide range of equipment types where hydraulic performance and connection reliability are critical to machine operation.

Typical industries and applications include:

• Earth-moving and construction equipment
• Agricultural machinery
• Industrial automation systems
• Injection molding machines
• Hydraulic presses and molding equipment
• Machine tools and industrial plants
• Offshore and shipyard machinery
• Chemical processing systems

Each application presents unique design constraints involving pressure requirements, connection frequency, available space, and environmental exposure. Custom solutions help ensure that hydraulic interfaces function reliably within those conditions.

Engineering Custom Hydraulic Solutions for OEM Equipment

Developing a custom hydraulic connection system requires close collaboration between equipment designers and hydraulic specialists. Stucchi works with OEM engineers to evaluate the machine architecture, hydraulic circuit requirements, and operating environment before developing a connection solution.

Engineering support may include:

• Designing custom coupler configurations
• Developing multi-coupling plate systems
• Selecting materials compatible with specialized fluids
• Optimizing hydraulic interfaces for machine layouts
• Integrating connections into automated equipment

Stucchi engineers support the entire development process, from concept and design to manufacturing and testing. This integrated approach allows customers to develop hydraulic connection systems that are fully aligned with machine performance requirements.

Learn more about the engineering philosophy behind these solutions, and how Stucchi’s Promise outlines our commitment to designing, engineering, and manufacturing hydraulic connection technologies for demanding industrial applications.

From Problem to Prototype: Developing Custom Hydraulic Solutions

Custom hydraulic solutions often begin with a specific challenge: a machine that requires a connection interface not supported by standard couplings. In these cases, Stucchi works with OEMs and equipment manufacturers to develop prototype solutions that address the application’s unique requirements.

This process may involve:

• Evaluating existing hydraulic layouts
• Designing custom connection interfaces
• Developing prototype components
• Testing hydraulic performance under operating conditions
• Refining the design for production implementation

By supporting both problem-solving and new equipment development, Stucchi helps OEMs move from concept to a reliable hydraulic connection system that integrates directly into their machines.

Engineering Scenarios That Often Require Custom Hydraulic Connections

Certain machine designs consistently require custom hydraulic connection solutions. These situations typically arise when standard couplers cannot meet the equipment’s physical, operational, or environmental requirements.

Below are several common engineering scenarios where custom hydraulic solutions are often required.

Multi-Circuit Attachment Interfaces

Equipment such as demolition tools, drilling systems, or injection molding equipment may require several hydraulic circuits to connect simultaneously.

In these cases, engineers often implement multi-coupling systems that allow multiple hydraulic lines to connect in a single motion while maintaining reliable sealing and correct circuit alignment.

Automated Machine Connections

Some industrial equipment requires hydraulic circuits to connect automatically as part of a machine cycle.

Custom coupler systems can be integrated into:

• Automated manufacturing equipment
• Robotic tooling systems
• Machine docking stations
• Modular production equipment

These designs must consider alignment tolerance, connection forces, sealing reliability, and cycle durability.

High-Cycle Connection Environments

Machines that frequently change attachments or tools require connection systems that can withstand repeated connect/disconnect cycles without degrading sealing performance.

Examples include:

• Excavator attachments
• Agricultural implements
• Hydraulic tool systems
• Mobile service equipment

Custom connection solutions can improve durability while simplifying operator interaction.

Aggressive Fluid or Environmental Conditions

Some hydraulic systems use fluids or operate in environments that standard materials cannot tolerate.

Examples include:

• Offshore machinery exposed to salt environments
• Chemical processing equipment
• Cooling circuits for industrial presses
• Systems handling specialty hydraulic fluids

Custom material selection and sealing technologies help ensure long-term system reliability.

See Real Examples of Custom Hydraulic Solutions

Real-world applications provide the best demonstration of how custom hydraulic connection systems solve complex engineering challenges.

Stucchi case studies highlight projects where specialized coupling solutions were developed to address unique hydraulic configurations, improve connection efficiency, or support demanding operating environments.

These examples illustrate how engineering collaboration and custom design can transform difficult hydraulic interface problems into reliable, repeatable connection systems.

Explore Stucchi Case Studies to see examples of custom hydraulic solutions implemented across a variety of industries and equipment types.

Start a Custom Hydraulic Engineering Consultation

Hydraulic systems rarely remain static. As equipment evolves and operating conditions change, connection interfaces may require new solutions that standard components cannot provide.

Stucchi engineers work with OEMs, equipment manufacturers, and industrial operators to develop hydraulic connection systems designed for specific machine architectures and operating environments. Whether the challenge involves multi-line connections, specialized fluids, automated equipment, or prototype development, custom hydraulic solutions can help improve reliability and simplify system integration.

Contact the Stucchi Technical Help Desk to discuss your hydraulic application and begin developing a custom hydraulic connection solution.
