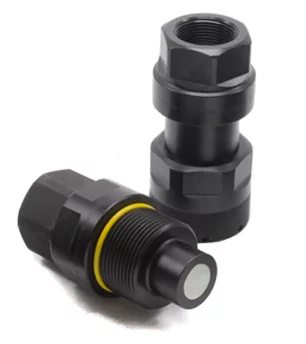

The VEPHD (Heavy Duty) Series offers the same features of the VEP series, with upgraded material, a yellow o-ring visual ID, and larger mating areas. Like the VEP, the VEPHD is a popular solution for hydraulic circuit applications subject to high pressure impulses and circuits which experience high residual or trapped pressure in a line, offered in a more durable, higher grade of steel and all QPQ plating for increased longevity.

SKU: N/A Categories: , Tags: , , , , , , , , ,

Speak to a Specialist:
847-956-9720 or Via Email

Related Industries

  • Agricultural

  • Automotive

  • Coiled tubing

  • Demolition

  • Die Casting

  • Mobile

  • Oil & Gas

  • Railroad

  • Snow & Ice

  • Steel

Description

Connect/Disconnect Under High Residual Pressure

FEATURES
  • Size range: 3/4” thru 1 1/2”
  • Port options: NPT, SAE, Flange Ports
  • Interchanges with VEP, VEPHDL Series
  • Connect/disconnect up to 25 MPa/3625 psi residual pressure
  • Working pressure: 40-55 MPa/5800-7975 psi range
  • Higher grade of steel for longer life
  • Eliminates brinelling, reduces leakage
  • Entire body in QPQ
  • Wrench flats on the male for ease of connection
APPLICATIONS
  • High impulse mobile circuits
  • All construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure
  • Excavators w/ auxiliary line for attachments: thumbs, grapples, hammers, hydraulic compactors, hydraulic tampers, demolition



Size Part Order Code Description Part Order Code Description
VEPHD Coupler Dust Plug VEPHD Coupler Dust Cap
3/4 Plug 815300036 CAP F. VEP15R Cap 815300037 CAP M. VEP15R
1 Plug 815300038 CAP F. VEP17R Cap 815300039 CAP M. VEP17R
1 1/4 Plug 815300040 CAP F. VEP21R Cap 815300041 CAP M. VEP21R
1 1/2 Plug 815300028 CAP F. VEP30R Cap 815300029 CAP M. VEP30R

Available Options:

SKU Description Body Size Port Size Port Option Max Operating Pressure Coupled (PSI) Burst Pressure (PSI) Max Residual Pressure During Connection (PSI) Spillage (ml) Weight Dimensions
808101010

F. VEP15HD 3/4 NPT

 		5/83/4NPT79751450036250.033 2.05 lbs 3.34 × 2.12 in
808101011

M. VEP15HD 3/4 NPT

 		5/83/4NPT79752030036250.033 2.09 lbs 4.17 × 2.12 in
808101012

F. VEP17HD 1 NPT

 		3/41NPT72501450036250.018 2.82 lbs 3.93 × 2.31 in
808101013

M. VEP17HD 1 NPT

 		3/41NPT72501813036250.018 2.87 lbs 4.88 × 2.31 in
808101014

F. VEP21HD 1-1/4 NPT

 		11-1/4NPT68151160036250.06 4.45 lbs 4.2 × 2.75 in
808101015

M. VEP21HD 1-1/4 NPT

 		11-1/4NPT68151740036250.06 3.95 lbs 5.25 × 2.75 in
808101016

F. VEP30HD 1-1/2 NPT

 		1-1/21-1/2NPT58001160036250.2 9.61 lbs 5.26 × 3.74 in
808101017

M. VEP30HD 1-1/2 NPT

 		1-1/21-1/2NPT580036250.2 7.28 lbs 5.91 × 3.72 in
812201058

F. VEP25HDZN 1-1/4 NPT

 		1-1/41-1/4NPT60901160036250.06 5.91 lbs 4.35 × 3.15 in
812201059

M. VEP25HDZN 1-1/4 NPT

 		1-1/41-1/4NPT60901740036250.06 5.38 lbs 5.49 × 3.15 in
808104010

F. VEP15HD 3/4 SAE

 		5/83/4SAE79751450036250.033 2.01 lbs 3.34 × 2.12 in
808104011

M. VEP15HD 3/4 SAE

 		5/83/4SAE79752030036250.033 2.2 lbs 4.17 × 2.12 in
808104012

F. VEP17HD 1 SAE

 		3/41SAE72501450036250.018 2.8 lbs 3.96 × 2.31 in
808104013

M. VEP17HD 1 SAE

 		3/41SAE72501813036250.018 2.84 lbs 4.88 × 2.31 in
808104014

F. VEP21HD 1-1/4 SAE

 		11-1/4SAE68151160036250.06 4.43 lbs 4.2 × 2.75 in
808104015

M. VEP21HD 1-1/4 SAE

 		11-1/4SAE68151740036250.06 3.92 lbs 5.25 × 2.75 in
808104016

F. VEP30HD 1-1/2 SAE

 		1-1/21-1/2SAE58001160036250.2 9.56 lbs 5.26 × 3.74 in
808104017

M. VEP30HD 1-1/2 SAE

 		1-1/21-1/2SAE580036250.2 7.23 lbs 5.91 × 3.72 in
N/A N/A
812204059

M. VEP25HDZN 1-1/4 SAE

 		1-1/41-1/4SAE60901740036250.06 5.38 lbs 5.49 × 3.15 in
808124012

F. VEP17HD 1 FH Code 62

 		3/41CODE 62 FLANGE HEAD60901450036250.018 3.7 lbs 6.13 × 2.31 in
808124013

M. VEP17HD 1 FH Code 62

 		3/41CODE 62 FLANGE HEAD60902400036250.018 3.63 lbs 6.9 × 2.31 in
808124014

F. VEP21HD 1-1/4 FH Code 62

 		11-1/4CODE 62 FLANGE HEAD60901160036250.06 5.72 lbs 6.72 × 2.75 in
808124015

M. VEP21HD 1-1/4 FH Code 62

 		11-1/4CODE 62 FLANGE HEAD60902400036250.06 4.75 lbs 7.25 × 2.75 in
808124016

F. VEP30HD 1-1/2 FH Code 62

 		1-1/21-1/2CODE 62 FLANGE HEAD60901160036250.2 11.51 lbs 8.25 × 3.74 in
808124017

M. VEP30HD 1-1/2 FH Code 62

 		1-1/21-1/2CODE 62 FLANGE HEAD60902400036250.2 8.47 lbs 8.33 × 3.72 in
808124018

F. VEP21HD 1 FPM Code 62

 		11code-62-flange-pad-metric60901160036250.06 6.61 lbs 4.6 × 2.75 in
808124019

M. VEP21HD 1 FPM Code 62

 		11code-62-flange-pad-metric60902400036250.06 6.55 lbs 5.32 × 2.75 in
808124020

F. VEP17HD 1 FPU Code 62

 		3/41code-62-flange-pad60901450036250.018 3.7 lbs 6.13 × 2.31 in
808124021

M. VEP17HD 1 FPU Code 62

 		3/41code-62-flange-pad60902400036250.018 3.64 lbs 6.9 × 2.31 in
808124022

F. VEP21HD 1-1/4 FPU Code 62

 		11-1/4code-62-flange-pad60901160036250.06 5.73 lbs 6.72 × 2.75 in
808124023

M. VEP21HD 1-1/4 FPU Code 62

 		11-1/4code-62-flange-pad60902400036250.06 4.76 lbs 7.25 × 2.75 in
808124024

F. VEP30HD 1-1/2 FPU Code 62

 		1-1/21-1/2code-62-flange-pad60901160036250.2 15.23 lbs 6.17 × 3.74 in
808124025

M. VEP30HD 1-1/2 FPU Code 62

 		1-1/21-1/2code-62-flange-pad60902400036250.2 10.6 lbs 5.89 × 3.72 in
808124034

F. VEP30HD 1-1/4 FPM Code 62 M14

 		1-1/21-1/4code-62-flange-pad-metric60901160036250.2 11.53 lbs 8.25 × 3.74 in
808124035

M. VEP30HD 1-1/4 FPM Code 62 M14

 		1-1/21-1/4code-62-flange-pad-metric60902400036250.2 8.49 lbs 8.33 × 3.72 in
808124036

F. VEP30HD 1-1/4 FPU Code 62

 		1-1/21-1/4code-62-flange-pad60901160036250.2 13.02 lbs 5.85 × 3.74 in
808124037

M. VEP30HD 1-1/4 FPU Code 62

 		1-1/21-1/4code-62-flange-pad60902400036250.2 9.19 lbs 5.81 × 3.72 in
808124038

F. VEP30HD 1-1/4 FH Code 62

 		1-1/21-1/4CODE 62 FLANGE HEAD60901160036250.2 11.11 lbs 7.85 × 3.74 in
808124039

M. VEP30HD 1-1/4 FH Code 62

 		1-1/21-1/4CODE 62 FLANGE HEAD60902400036250.2 8.07 lbs 7.94 × 3.72 in
808124040

F. VEP30HD 1-1/4 FPM Code 62 M12

 		1-1/21-1/4code-62-flange-pad-metric60901160036250.2 13.05 lbs 5.85 × 3.74 in
808124041

M. VEP30HD 1-1/4 FPM Code 62 M12

 		1-1/21-1/4code-62-flange-pad-metric60902400036250.2 9.22 lbs 5.81 × 3.72 in
N/A N/A
812224061

M. VEP25HDZN 1-1/4 FPU Code 62

 		1-1/41-1/4code-62-flange-pad60902400036250.06 7.23 lbs 5.49 × 3.15 in
N/A N/A
812224063

M. VEP25HDZN 1-1/4 FH Code 62

 		1-1/41-1/4CODE 62 FLANGE HEAD60902400036250.06 6.22 lbs 7.61 × 3.15 in
808124046

F. VEP15HD 3/4 FH Code 61

 		5/83/4code-61-flange-head0.033 2.36 lbs 5.22 × 2.12 in
808124047

M. VEP15HD 3/4 FH Code 61

 		5/83/4code-61-flange-head0.033 2.56 lbs 5.86 × 2.12 in
808124050

F. VEP17HD 1 FH Code 61

 		3/41code-61-flange-head60901450036250.018 3.48 lbs 5.77 × 2.31 in
808124051

M. VEP17HD 1 FH Code 61

 		3/41code-61-flange-head60902400036250.018 3.47 lbs 6.55 × 2.31 in
N/A N/A
N/A N/A
N/A N/A
